JBL AC18/95

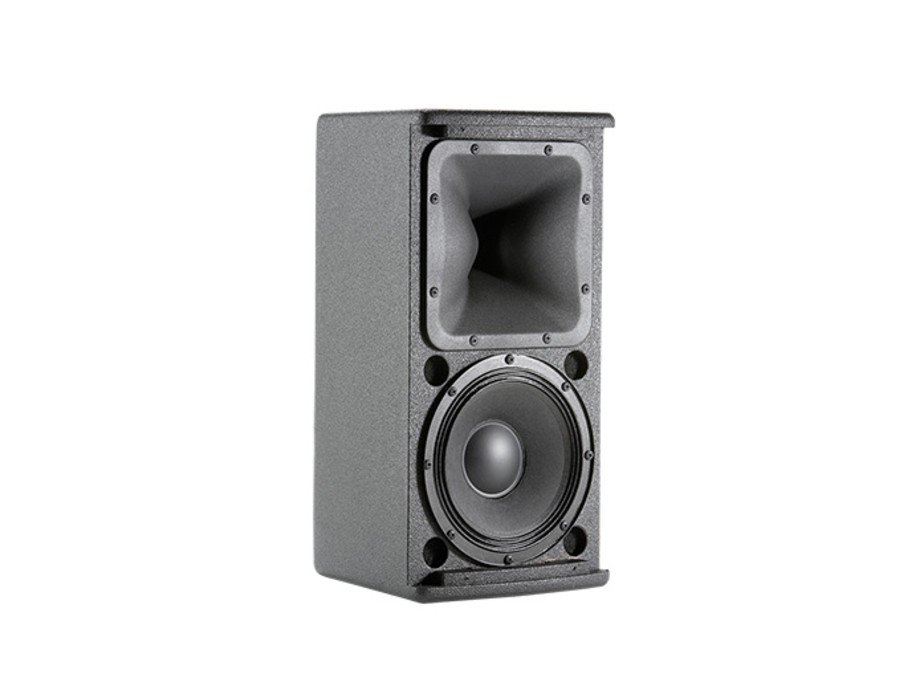

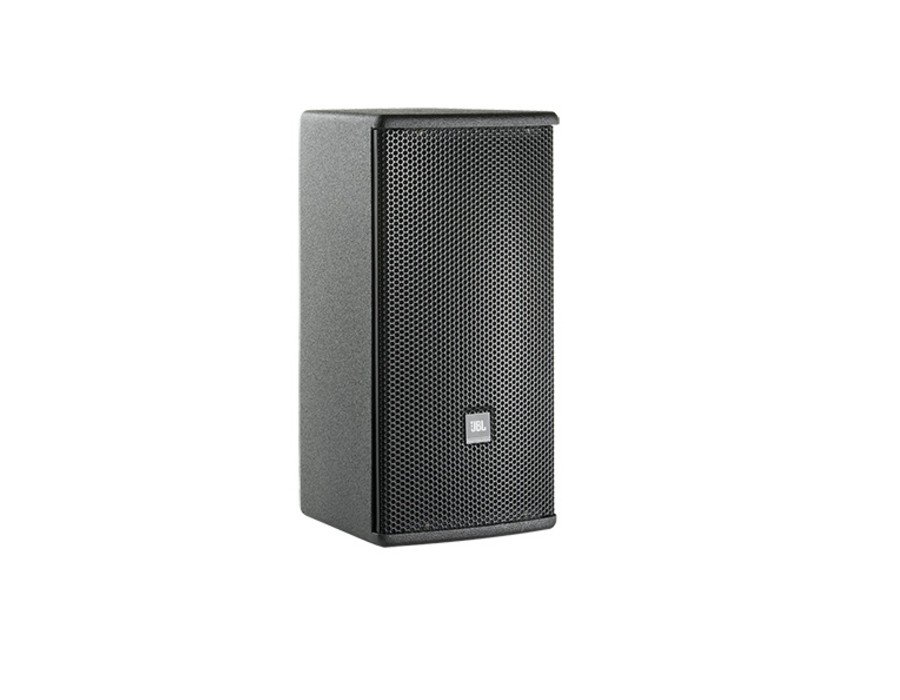

JBL AC18/95 Compact 2-way Loudspeaker with 1 x 8” LF
High output, 2-way loudspeaker systems combining flexibility with high fidelity
Frequency Range (-10dB) 52 Hz – 20 kHz
Frequency Response (±3 dB) 63 Hz – 19 kHz
System Power Rating 250W Cont. Pink Noise 500W Program1000W Peak
Impedance 8 ohms
Coverage Pattern /26: 120° x 60°/95: 90° x 50°
Dimensions (H x W x D) 469.9 x 237.5 x 254.0 mm (18.5 x 9.4 x 10.0 in)
Net Weight (each) 12.8 kg (28.2 lb)
Crossover Modes Passive
Maximum SPL (1m) 117 dB
System Sensitivity (1w @ 1m) 93 dB SPL
LF Driver 1 x JBL 228H, 205 mm (8 in) SFG™ driver with 64 mm (2.5 in) edge wound voice coil
Nominal LF Driver Impedance 8 Ohms
HF Driver 1 x 2408H-1 25 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil
Enclosure 12 mm and 15 mm exterior grade multi-ply hardwood plywood
Suspension Attachment 6 x M8 points; 1 top, 3 bottom, 2 rear. 4 x M6 rear for OmniMount® 30.0 and MultiMount® MM-022-BT, MM-024-BT, MM-020-CM.
Environmental Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WR
- 1” Exit Compression Driver Coverage PT™ Waveguide
- 205 mm (8 in) LF transducer
- Compact enclosure
- 500W Program
- Dual Neutrik NL4 connectors plus screw terminal
- Attachment points for optional U-bracket, third part OmniMount® type bracket and stand mount accessory
