JBL AC18/26

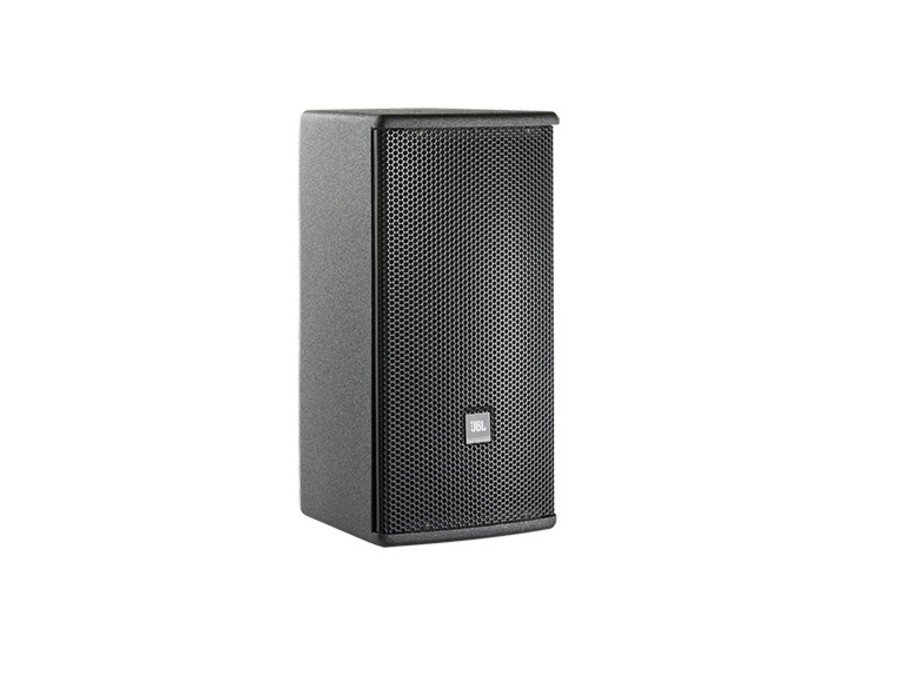

JBL AC18/26 Compact 2-way Loudspeaker with 1 x 8” LF
High output, 2-way loudspeaker systems combining flexibility with high fidelity
- 1” Exit Compression Driver Coverage PT™ Waveguide
- 205 mm (8 in) LF transducer
- Compact enclosure
- 500W Program
- Dual Neutrik NL4 connectors plus screw terminal
- Attachment points for optional U-bracket, third part OmniMount® type bracket and stand mount accessory

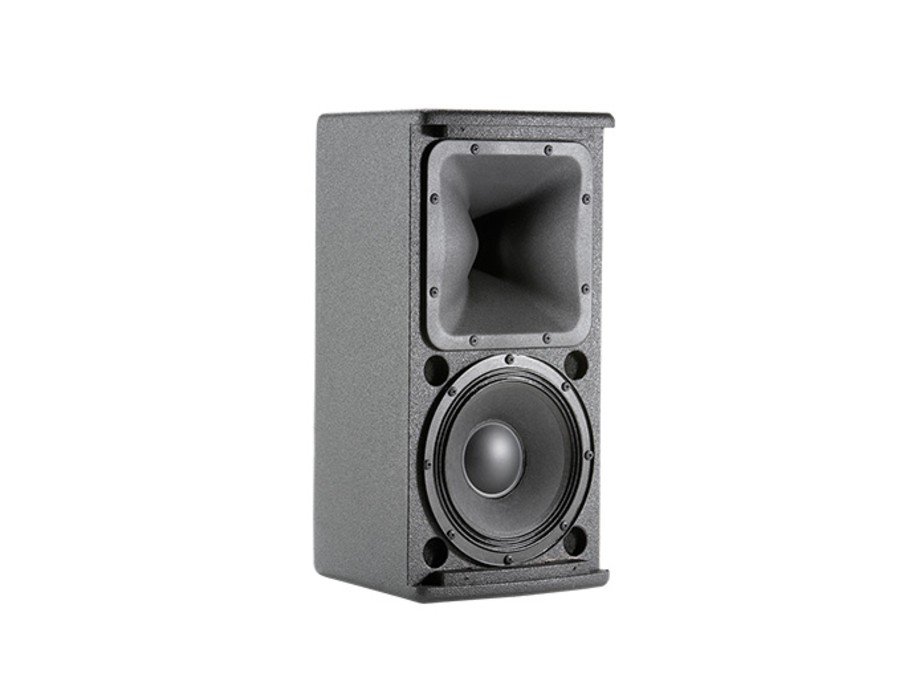

The AC18/26 is a compact fullrange loudspeaker system designed to provide maximum bandwidth and SPL in a single system package and yet be visually unobtrusive. The enclosure design allows for installation very close to walls and ceilings making it an ideal choice for under balcony, column, or wall mounting. The high frequency device is a 1” exit compression driver integrated into a newly designed 120° x 60° rotatable PT™ (Progressive Transition) waveguide providing even coverage throughout the intended listening area.
Specifications
Frequency Range (-10dB) 52 Hz – 20 kHz
Frequency Response (±3 dB) 63 Hz – 19 kHz
System Power Rating 375 W (AES rated)
250 W / 500 W / 1000 W (Continuous/Program/Peak) (IEC rated)
Impedance 8 ohms
Coverage Pattern /26: 120° x 60°/95: 90° x 50°
Dimensions (H x W x D) 469.9 x 237.5 x 254.0 mm (18.5 x 9.4 x 10.0 in)
Net Weight (each) 12.8 kg (28.2 lb)
Crossover Modes Passive
Maximum SPL (1m) 116 dB
System Sensitivity (1w @ 1m) 92 dB SPL
LF Driver 1 x JBL 228H, 205 mm (8 in) SFG™ driver with 64 mm (2.5 in) edge wound voice coil
Nominal LF Driver Impedance 8 Ohms
HF Driver 1 x 2408H-1 25 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil
Enclosure 12 mm and 15 mm exterior grade multi-ply hardwood plywood
Suspension Attachment 6 x M8 points; 1 top, 3 bottom, 2 rear. 4 x M6 rear for OmniMount® 30.0 and MultiMount® MM-022-BT, MM-024-BT, MM-020-CM.
Environmental Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX.
