Descripción
JBL AC118S

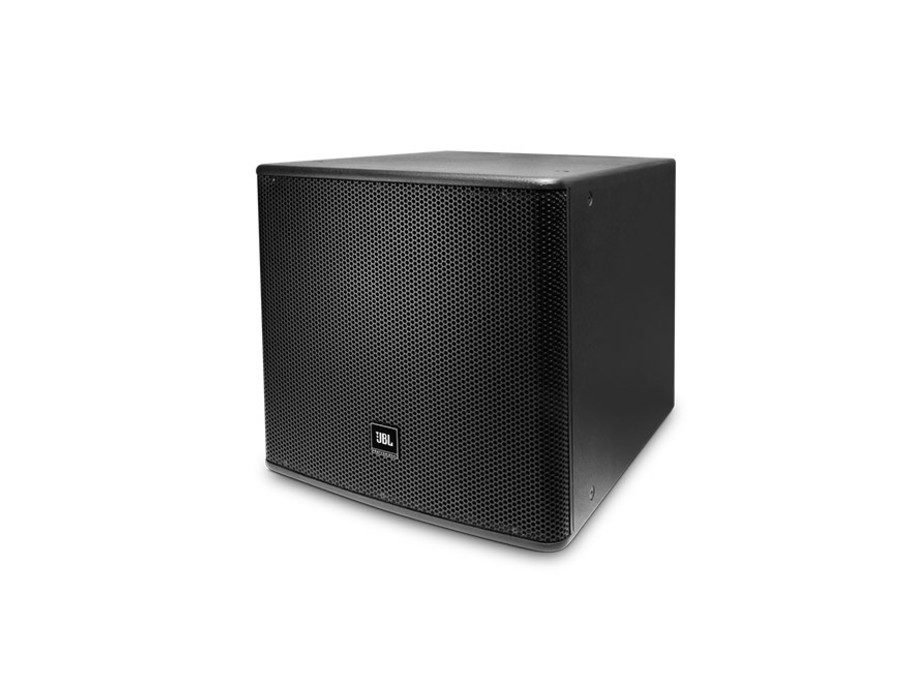

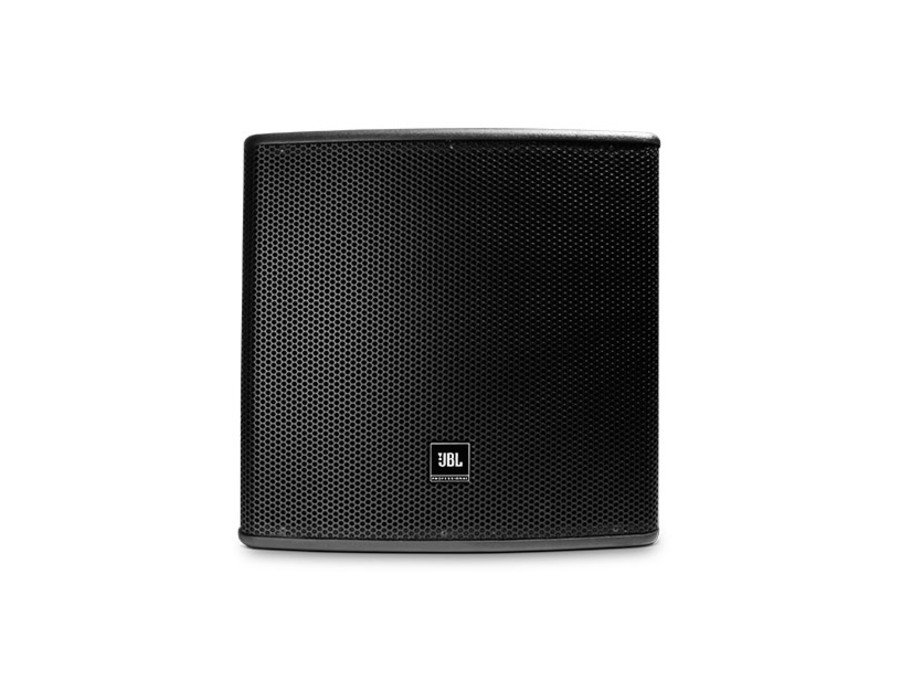

JBL AC118S 18″ High Power Subwoofer System
AC118S is a high power subwoofer system comprised of one 459 mm (18 in) low frequency driver in a vented, front-loaded configuration for extended bandwidth. The rectangular cabinet is fitted with M10 threaded suspension points for ultimate flexibility.
SPECIFICATIONS
Frequency Range (-10 dB) 32 Hz – 250 Hz
Frequency Response (±3 dB) 40 Hz – 250 Hz
System Sensitivity (1w @ 1m) 95 dB
Nominal Impedance 8 ohms
Maximum SPL(1m) 122 dB (128 dB peak)
Power Rating (Continuous/Program/Peak) 450 W/900 W/1800 W
Low frequency driver 1x 18″ woofer (P/N: 5021800), 457.2 mm (18 in) driver with 75 mm (3 in) voice-coil
Input Connector Dual Neutrik NL4MP connectors plus covered barrier trip terminals
Enclosure Material 18 mm multi-ply hardwood plywood
Grille Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
Finish Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
Suspension / Mounting 12 x M10 threaded suspension points
Dimensions (H x W x D) 548 mm x 561 mm x 720 mm
21.5 in x 22.0 in x 28.3 in
21.5 in x 22.0 in x 28.3 in
Net Weight 32.3 kg (71.2 lbs)
As a part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications, AC118S provides a natural low-frequency sound quality.
- High power and long excursion driver for lower frequency reproduction.
- High sensitivity with lower power compression
- Large port for high output and low-frequency reinforcement
- Multiple Attachment Points for Ultimate Flexibility
- Robust 18 mm multiply hardwood with textured black finish
- Performing Spaces
- Clubs & Bars
- Houses of Worship
- Multi Media Spaces
- Retail & Hospitality Spaces
- Presentation Suites
- Educational Facilities
