MONITOR DE ESTUDIO BIDIRECCIONAL

PRESENTACIÓN: PIEZA

Disponible para reserva

Categoría: Etiqueta:

Descripción

JBL 305P MkII

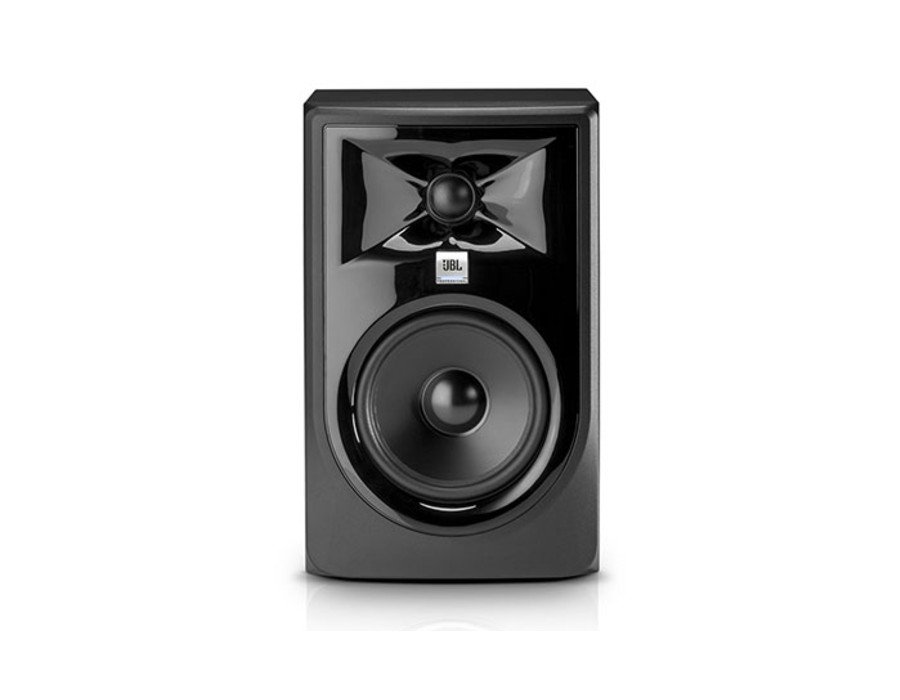

JBL 305P MkII Powered 5″ Two-Way Studio Control

The next-generation JBL 305P MkII compact powered studio monitor makes legendary JBL performance available to every studio. With the revolutionary JBL Image Control Waveguide and refined transducers, JBL 305P MkII offers stunning detail, precise imaging, a wide sweet spot and impressive dynamic range that enhances the critical listening capabilities of any modern workspace. Featuring patented technologies derived from the JBL 7 Series and M2 Master Reference Monitors, and sporting a sleek, modern design, JBL 305P MkII delivers outstanding performance and an enjoyable mix experience at an accessible price.

Specifications

LF Driver          126mm (5″)
HF DRIVER SIZE       25mm (1″)
HF DRIVER TYPE      Soft dome
Crossover       1725Hz 4th order acoustic Linkwitz-Riley
OK FOR USE NEAR MAGNETICALLY SENSITIVE EQUIPMENT  Yes
INPUT SENSITIVITY (-10dBV INPUT)  92dB / 1m
Power Configuration  Bi-amplified
HF DRIVER POWER AMP  41W, Class-D
LF Driver Power Handling  41W, Class-D
Frequency Response (±3 dB)  49Hz – 20kHz
Frequency Range (-10dB)  43Hz – 24kHz
LOW FREQUENCY EXTENSION (-10dB)  43Hz
Maximum Continuous SPL  94dB
Maximum Peak SPL  108dB
MAXIMUM PEAK INPUT LEVEL(-10dBV / +4dBu)  +6dBV / +20.3dBu
SYSTEM DISTORTION CRITERIA  <10% THD at maximum output with full compressor / limiter engagement
ELECTRICAL DISTORTION CRITERIA  0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output
Signal to Noise Ratio  75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output
Coverage Angle  120° x 90°
Input Connectors  1 x XLR female, 1 x TRS female, balanced
HF TRIM CONTROL  -2dB, 0dB, +2dB
BOUNDARY EQ  LF Shelf @ 50Hz: -3dB, -1.5dB, 0dB
AC INPUT VOLTAGE  100 – 240VAC (±10%), 50 / 60Hz
ENCLOSURE TYPE  Ported
Enclosure 15mm MDF
ENCLOSURE FINISH  Matte black PVC
BAFFLE CONSTRUCTION  Injection-molded structural ABS
CABINET DIMENSIONS (H x W x D)  298 x 185 x 231 mm (11.75″ x 7.3″ x 9.9″)
DISPLAY CARTON (H x W x D)  354 x 244 x 299mm (13.9″ x 9.6″ x 11.8″)
SHIPPING CARTON (H x W x D)  373 x 260 x 315mm (14.7″ x 10.2″ x 12.4″)
Net Weight (each)  4.73 kg (10.43 lbs)

SHIPPING GROSS WEIGHT 5.72 kg (12.61 lbs)

The next generation of JBL 305P MkII powered studio controls brings legendary JBL performance to any studio. Featuring the revolutionary JBL Image Control Waveguide and enhanced transducers, the JBL 305P MkII delivers incredible detail, precise imaging, a wide sweet spot, and impressive dynamic range that enhances the most critical listening conditions in any modern workspace. With patented technology derived from the JBL 7 Series and M2 Master Reference Monitors, in addition to its sleek, modern design, the JBL 305P MkII offers exceptional performance and an unbeatable experience at a very affordable price.

  • Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spot
  • Next-generation JBL transducers for optimized transient response and improved linearity
  • Patented Slip Stream™ low-frequency port for superior bass performance at all playback levels
  • Dual integrated, custom Class-D amplifiers provide 82 watts of power for high output and dynamic range
  • New Boundary EQ settings compensate for low frequency variants introduced by the environment
  • HF Trim switch adjusts high-frequency output to room acoustics or personal preferences
  • Flexible connectivity with balanced XLR and 1/4″ TRS inputs, +4dBu / -10dBV input-sensitivity switch and adjustable volume control
  • Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space
  • Strenuous JBL 100-hour full-power test ensures years of reliability
  • Sleek, modern design provides a visual upgrade to any studio
