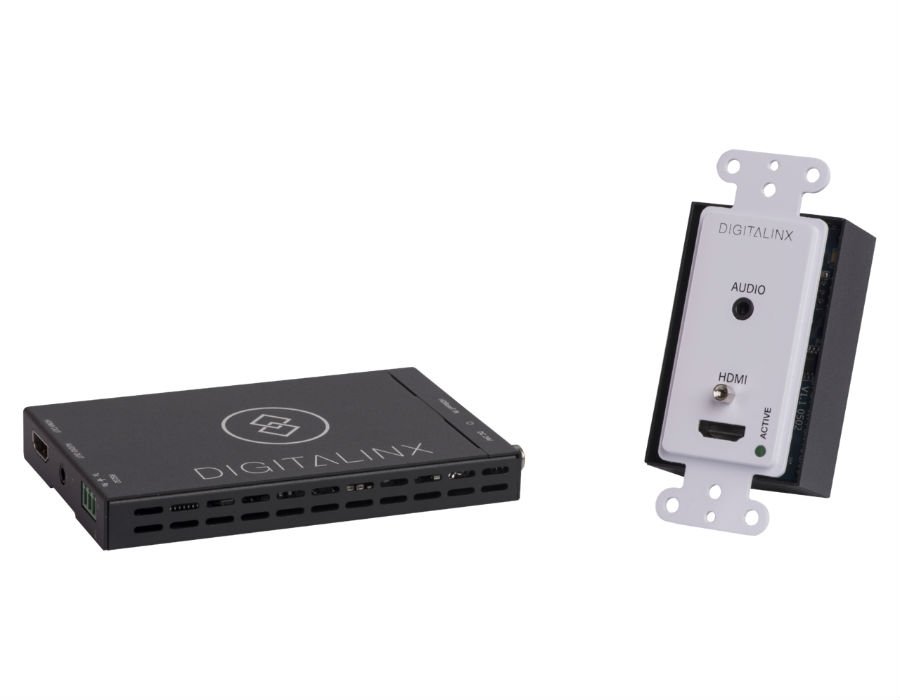

Intelix DL-1H1A-WPKT-W
The Digitalinx DL-1H1A-WPKT-W HDBaseT extender set transmits HDMI, audio and RS232 over single category 6 twisted pair cable. The DL-1H1A-WPKT-W can transmit 4K resolutions up to 4K@60Hz, 4:2:0 up to 40m / 120’ and 1080P up to 70m / 230’. The audio circuit is completely separate and is not dependent on the HDMI input source to be active. The Digitalinx DL-1H1A-WPKT-W is HDCP 2.2 compliant. The DL-1H1A-WPKT-W HDBaseT receiver powers wall plate transmitter via HDBaseT so there is no need for an external power supply for the wall plate.
The DL-1H1A-WPKT-W is sold only as a set. The individual transmitter and receiver are not compatible with other HDBaseT devices due to proprietary PoE circuitry.
- Complete set includes Wall plate TX, RX, Power supply, cover plate
- Extend HDMI up to 4K & Analog Audio signals up to 70 meters. HDCP2.2 Compliant
- Extends RS232 & 1 way PoC from RX to wall plate TX
- Supports video up to 4K2K@30Hz (4:4:4), 4K2K@60Hz (4:2:0) 10.2G
- Supports all HDMI audio formats
- Single cable 40m for 4K / 70m for 1080P
- RS232 & CEC pass-through
- Dedicated 3.5mm audio independent from the HDMI signal
- Remote power from receiver to wall plate transmitter
- TX is standard US 1-gang decorator format
- HDCP 2.2 compliant
Applications
- Extend HDMI source and audio source at the same time or independently
- Extension of HDMI and 3.5mm audio signals
- Education, commercial video, residential
