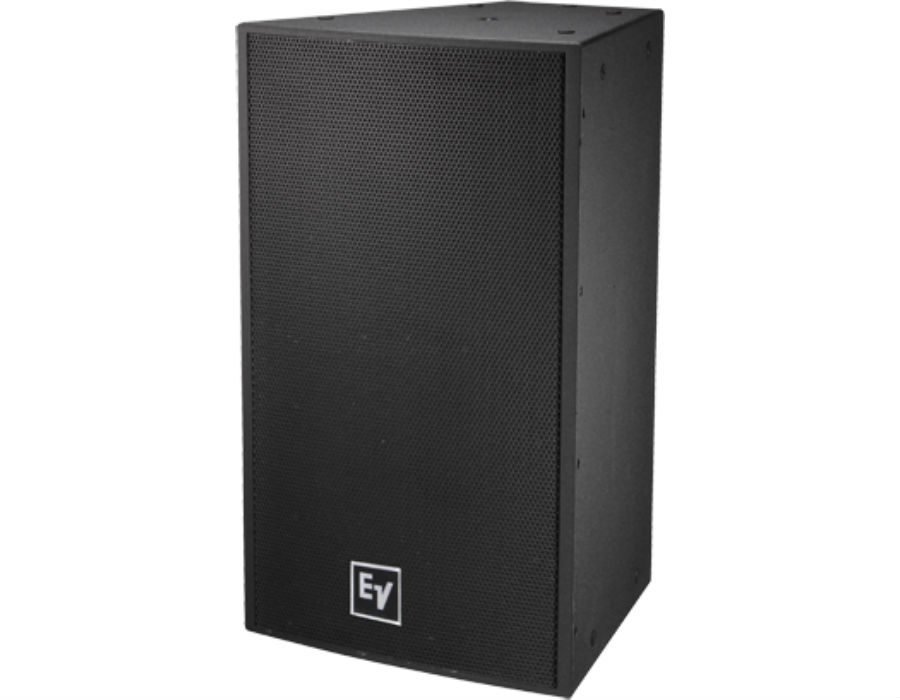

Electro-Voice EVF-1152D/96
Electro-Voice EVF-1152D/96
- Compact and lightweight
- Low distortion, high efficiency
- Ideal for fixed installations
- DVX3151A woofer with fully symmetric drive
- 3-inch DH7N titanium/neodymium HF compression driver
- Rotatable Constant-directivity waveguide
- Six available patterns with coverage from 40º to 90º
- 100 dB sensitivity, 134 dB maximum SPL
- Power handling: 600 W continuous, 2400 W peak
- 4th-order crossover with HF protection
- Trapezoidal 13-ply birch enclosure in three finishes: EVCoat, PI, and fiberglass (FG)
- M10 threaded suspension points (22)
- Transformer kit available for distributed systems
EVF-1152D/96 features a 90° x 60° rotatable waveguide, design for mid-near field medium throw raw spread coverage pattern.
SPECIFICATIONS
| Frequency Range (-10 dB) | 40 Hz – 21 kHz |
| Suspension | 22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included) |
| Weatherized | No |
