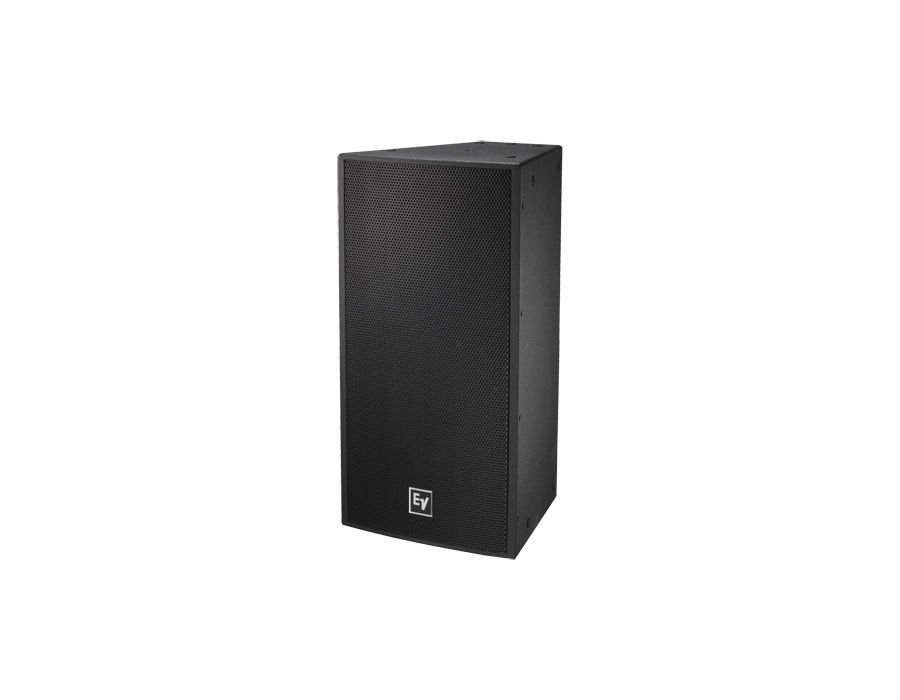

Electro-Voice EVF-1122D/126-FG
Single 12” 2‑Way 120°x60° Full‑Range Fully‑Weatherized Loudspeaker System
- Fully-weatherized fiberglass finish with gland nut and stainless-steel grille
- DH7N 3” (76 mm) diaphragm, 1.4” (36 mm) exit pure titanium compression driver
- DVX3121A 12” (305 mm) LF transducer with fully symmetric drive
- Advanced fourth-order crossover network with HF protection
- Coverage pattern: 120° x 60° Constant Directivity 12” rotatable waveguide
- 97 dB sensitivity, 131 dB maximum SPL
- System rating: 600 W continuous, 2400 W peak
- Active rating: LF 500 W/HF 75 W continuous (2000 W/300 W peak)
- (22) M10 threaded suspension points
EVF-1122D/126-FG features a 120° x 60° rotatable waveguide, design for near field widest throw coverage pattern with fiberglass finish for outdoors full exposure applications.
