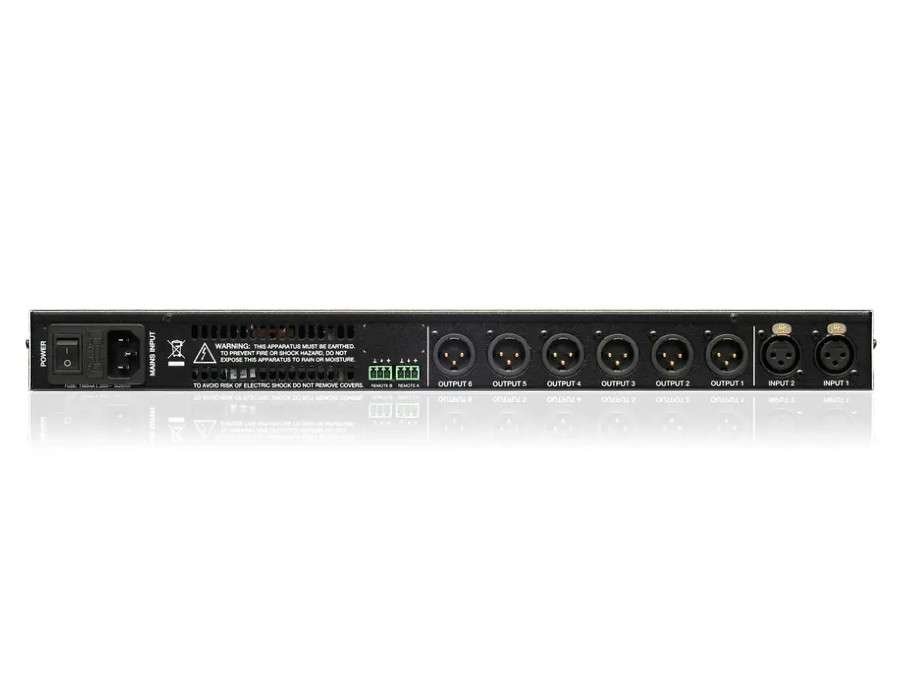

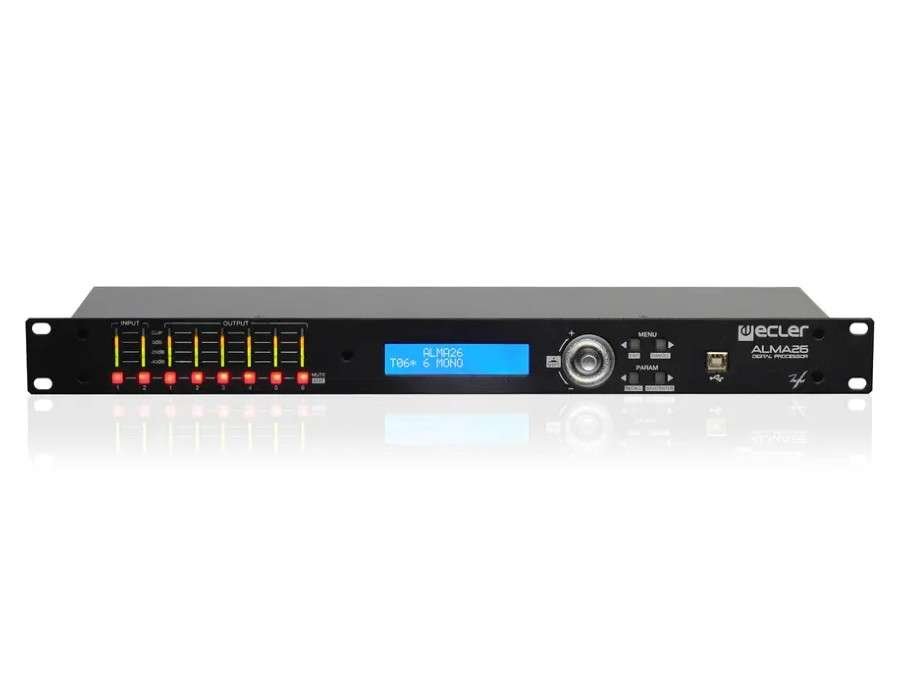

ALMA26 is a digital loudspeaker manager including 2 audio inputs and 6 audio outputs, USB interface and 2 volume remote control ports (0-10VDC).

KEY FEATURES

• 2 audio inputs x 6 audio outputs, all balanced
• 24 bits / 48 kHz DSP processing
• 2×20 characters front panel LCD display
• 4 front panel configuration keys + digital encoder
• USB interface and EclerCOMM Manager compatibility
• DSP processing:- GAIN, MUTE, POLARITY, etc., per input or output- 4 parametric EQ filters per input / 8 parametric EQ filters per output- Butterworth, Linkwitz-Riley or Bessel Crossover filters at outputs (up to 48 dB / oct)- Inputs and outputs delay- Compressor / limiter at outputs, including make-up gain- 3 LINK groups (output channels link)
• System templates to create user configurations
• 20 user Presets
• Labels’ edition (inputs, outputs, presets and device)
• Password protection system with 2 security modes

APPLICATIONS

• Permanent installation management system
• Live sound. Monitor management
• Stereo bi-amped general applications
