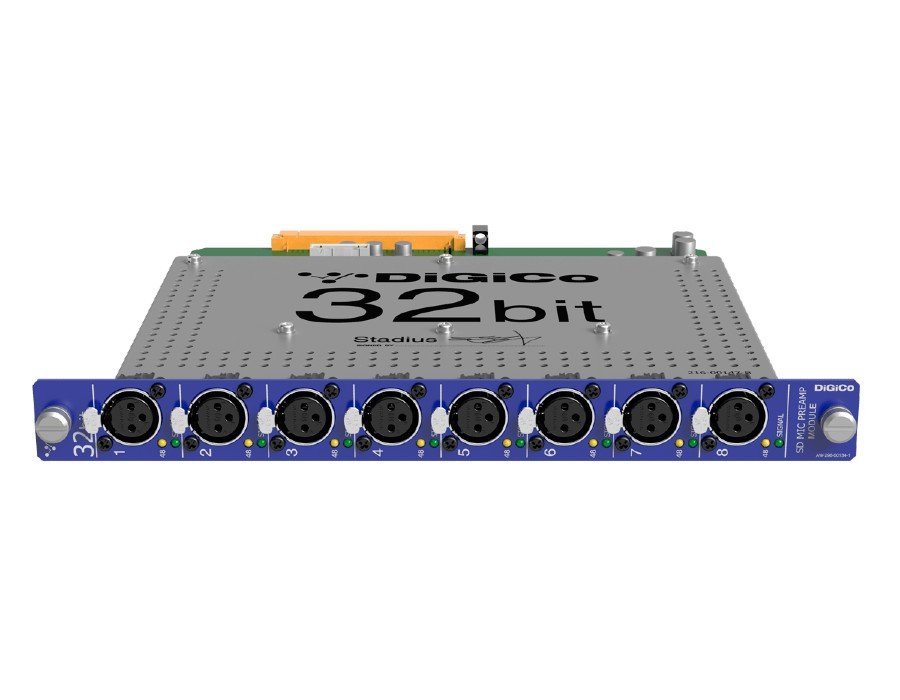

DiGiCo SD 32-BIT Mic Pre-Amp
DiGiCo SD 32-BIT Mic Pre-Amp
The “Stadius” 32bit, 8-channel microphone Pre-Amp uses the latest analogue-to-digital converter (ADC) technology available, combined with 50 years of analogue expertise. It pushes the boundaries of performance to a new limit, with a fully redesigned differential topology through the entire signal chain. This unique synergy of technology and audio experience has resulted in something we are very proud of; the Ultimate “Stadius” mic-pre.
- Fully differential audio path from input to converter
- Twin 32-bit ADC conversion per channel
- Lightening quick conversion time; 73uS
- Dynamic punch and increased audio depth; Dynamic range of 123dBA
- Incredibly low noise; 128dB EIN
- Transparency and clarity of audio; 20-22kHz <0.002% THD+N
- Class leading frequency response; 20-44.5kHz ±0.1dB
- Open and clear audio reproduction; 12dB harmonic weighting improvement
- 8 channels of temporal perfection; 0deg phase shift 20-22kHz
- Dedicated analogue, ultra-low noise linear power supplies; including +48V phantom power
- One phantom power blocking capacitor in the audio path; Gold Nichicon “MUSE” acoustic series
- Fully shielded analogue stage
- Precision clipping with no artefacts
- Reduced operating temperature (Sounds cooler)
- Roadworthy metal XLR connectors
