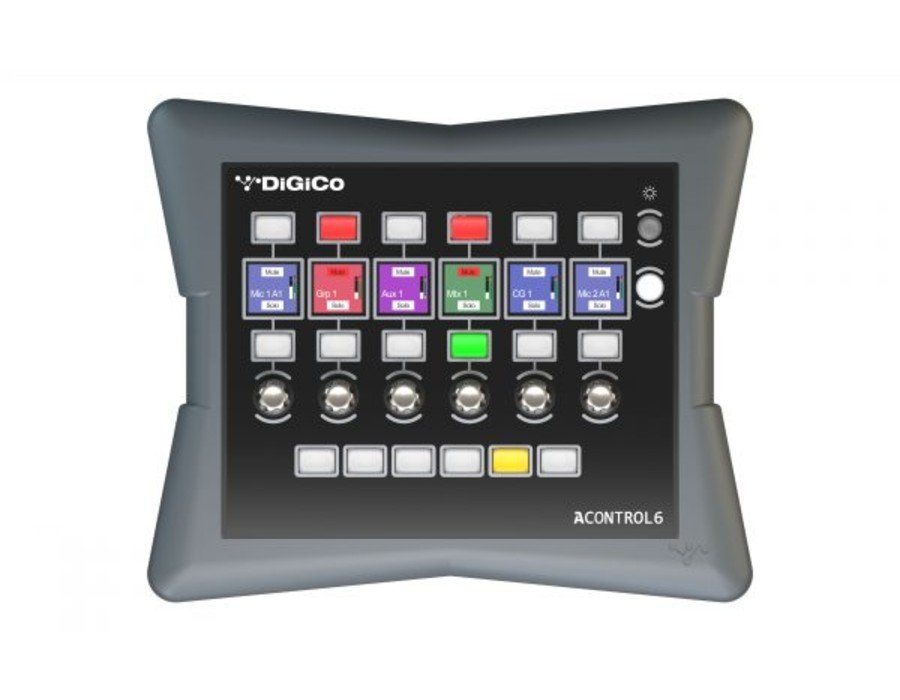

DiGiCo ACONTROL6

Multi-layer programmable remote controller with TCP/IP connectivity over standard Ethernet. Six rotary encoders, six TFT display and 18 programmable keys, allowing control of 36 individual channels. Connects to the 4REA4 centralised DSP engine control network and can be PoE powered or externally with a 12V PSU. Ideal for room, multi-zone or personal monitoring control.

6 x Push ‘n’ Turn Rotary Encoders
6 Layers
18 Soft Touch, Colour changing Programmable Keys
6 TFT displays
PoE powered or external 12V PSU

The six-channel controller shall be designed to desktop mount or fix to a microphone stand using an optional adapter. It shall be powered either via PoE or the supplied 12VDC adapter.

Connection to the system processor shall be via standard Fast Ethernet. The functionality of the controls shall be determined by the system software. The controller will be supplied with a default name and address which can be changed in software.

It shall be possible to return to the default name and address using a recessed reset switch on the rear panel.
The dimmer switch shall step through different illumination levels for the buttons and screens for use in different
illumination environments.

The dimensions of the controller shall be:
250 (w) x 208 (h) x 98 (d) mm
9.84 (w) x 8.18 (h) x 3.85 (d) inches
Unpacked Weight: 4Kgs. (8.9lbs.)
