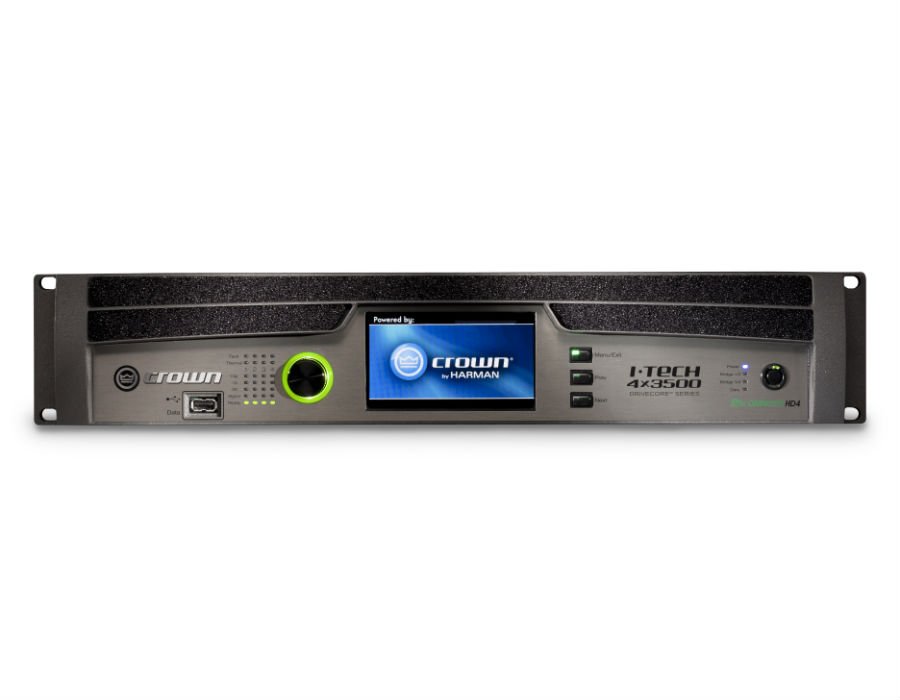

Crown I-Tech 4x3500HDS
Crown I-Tech 4x3500HDS Four-channel, 4000W @ 4Ω Power Amplifier
The I-Tech 4x3500HD amplifier is the industry’s first high-powered tour sound amplifier featuring four inputs, Analog, AES3, and CobraNet™, fully routable to any one of 4 outputs. Each channel features a complete compliment of OMNIDRIVEHD™ Processing, including the acclaimed LevelMAX™ Limiter Suite, and support for linear phase FIR filters as used in the latest JBL V5 loudspeaker tunings. Combine that with Crown’s patented Class-I technology delivering uncompromising power output across all four channels, and it’s easy to see why the I-Tech 4x3500HD is the flagship tour sound amplifier from Crown.
Performance I-Tech 4x3500HD Damping Factor (8 Ω): 20Hz to 100Hz > 5000 Crosstalk (below rated power, 20Hz to 1kHz) > 80dB Common Mode Rejection (CMR) (20 Hz to 1 kHz) > 55dB, typically > 70dB DC Output Offset (Shorted input) < ± 3 mV Input Impedance (nominal) 20 kilohms balanced, 10 kilohms unbalanced
Load Impedance (Note: Safe with all types of loads) Stereo Bridge Mono 2-4-8-16
Ω, 70V/100V 2-4-8 Ω, 70V//100V Required AC Mains Universal AC input, 100- 240VAC +-10%, 50/60Hz. Max. AC mains voltage. AC Line Connector USA, UK, European, Australia, India, Brazil, China (USA ships with Hubbell L6-30) Construction I-Tech 4x3500HD Ventilation Flow-through ventilation from front to back Cooling Dual-zone, microprocessor controlled, continuously variable speed fans Dimensions EIA Standard 19-inch rack mount width (EIA RS-310B), 3.5-inch (8.9-cm) height, 16.95-inch (43.1-cm) depth behind front mounting surface Weight
Net Shipping 29 pounds (13.1 kg) 37 pounds (16.8 kg)
