CHAUVET COREpar UV120 ILS
CHAUVET COREpar UV120 ILS

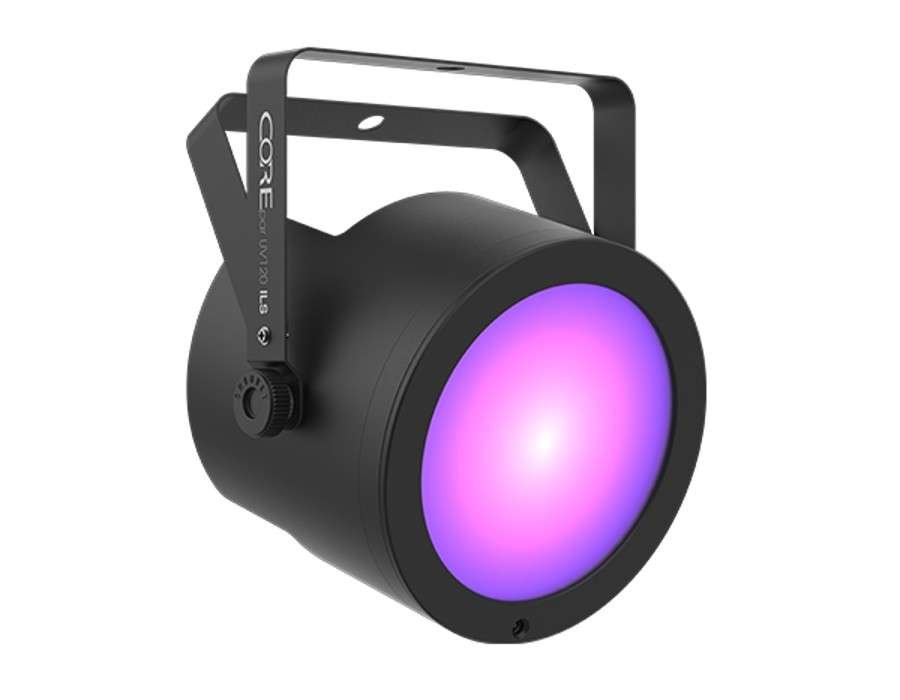

COREpar UV 120 ILS is a compact ultra-wide 120-watt UV wash with COB (Chip-on-Board) technology. Also on board is ILS compatibility which makes creating coordinated light shows across different fixture types easy. COREpar UV 120 ILS also has D-Fi USB compatibility for wireless Master/Slave or DMX control and high-frequency LED dimming lets you achieve flicker-free video operation. The included magnetic Fresnel lens allows the flexibility to go from an ultra-wide to narrow beam in seconds. Its sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit for easy connections. COREpar UV 120 ILS has a robust housing to withstand the harshness of traveling from gig to gig.
Highlights
- Compact ultra-wide UV wash with COB (Chip-on-Board) technology
- ILS compatibility for use in the ILS ecosystem
- D-Fi USB compatibility for wireless Master/Slave or DMX control
- Included magnetic Fresnel lens allows the flexibility to go from an ultra-wide to narrow beam in seconds
- Withstand the harshness of traveling from gig to gig with a robust housing
- Sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit
- Achieve flicker-free video operation with high-frequency LED dimming
- Save time running cables and extension cords by power linking multiple units
- Point-and-shoot operation of sound-activated and automated programs with the optional IRC-6 remote
- Fits best in the CHS-40 VIP Gear Bag
Specifications
- DMX Channels:1 or 5
- DMX Connectors:3-pin XLR
- Light Source:1 COB LED (UV) 120 W, (3.34A), 50,000 hours life expectancy
- Strobe Rate:0 to 20 Hz
- Beam Angle:
(with lens): 21°
(without lens): 44° - Field Angle:
(with lens): 34°
(without lens): 94° - Power Linking:5 units @ 120 V; 9 units @ 230 V
- Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current:
119 W, 1.5 A @ 120 V, 60 Hz
118 W, 0.9 A @ 230 V, 50 Hz - Weight:4.6 lb (2.1 kg)
- Size:8.9 x 7.4 x 9 in (225 x 185 x 228 mm)
- Approvals:CE, RoHS, UKCA
- Optional Controllers: IRC-6, D-Fi USB
