Bogen WMT1AS

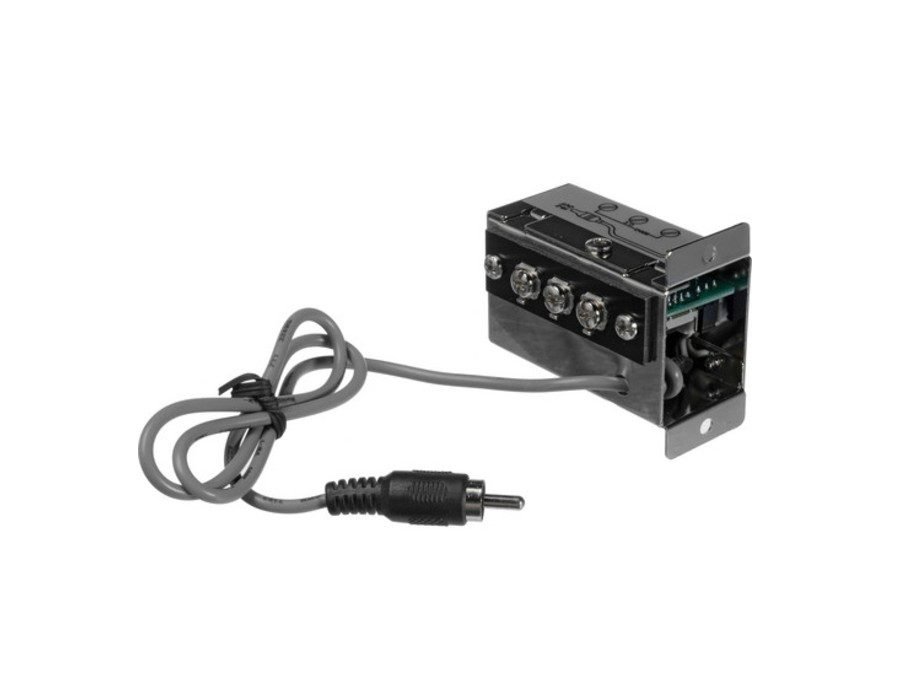

Bogen WMT1AS Line Matching Transformer w/ Speaker-Level Signal Adapter
The WMT1AS Input/Line Transformer from Bogen is designed for matching inputs from, or outputs to a 600-ohms line. The WMT1AS can also adapt speaker-level signals (25V/70V systems) to a level suitable for the AUX input of an amplifier.
This transformer may be used to connect telephone systems to most Bogen PA amps for telephone paging
Can also adapt speaker-level signals (25V/70V systems) to a level suitable for the AUX input of an amplifier.
The Bogen WMT1A transformer is designed especially for impedance-matching inputs from, or outputs to, a 600-ohm line. It has a Hi-Z, 10k-ohm primary impedance and a Lo-Z, 600-ohm secondary impedance balanced with a center tap. As an input-matching transformer, it may be used to connect telephone systems to most Bogen public address amplifiers for telephone paging. It also functions as an output-matching transformer in feeding program material over a 600-ohm telephone line (typically for «music-on-hold» applications). It is compatible with any amplifier having a 25V output terminal.
Works as an output-matching transformer in feeding material over a 600-ohm telephone line for «music-on-hold» while connecting with 25V output terminal
- All features and functions of the WMT1A (below), but can also adapt speaker-level signals to the AUX input level of an amplifier
- Hi-Z, 10k-ohm primary impedance
- Lo-Z, 600-ohm secondary impedance, balanced with center tap
- Matches high-to-low impedance or low-to-high impedance
- Adapts line-level signals to microphone inputs
- RCA connector for Hi-Z side
- Screw terminals for Lo-Z side
- Small steel enclosure with mounting ears allows easy mounting
- No wiring or soldering required
- May be used to provide a 600-ohm output from a Bogen mixer/pre-amplifier WMT1A
