Bogen SAH15

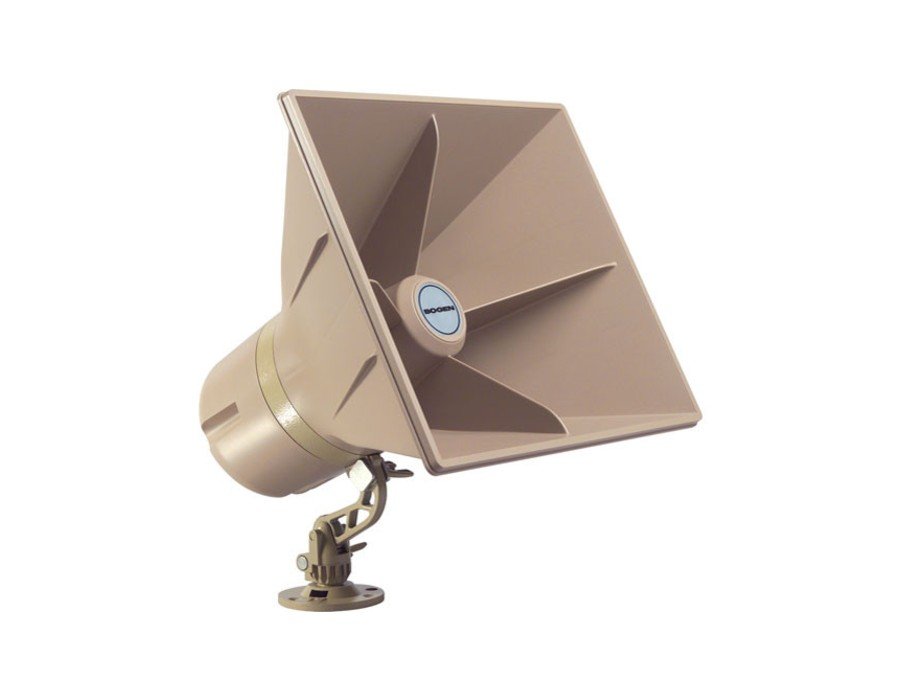

Bogen SAH15 Self-Amplified Horn Speakers
The Bogen Communications SAH15 is a 15W high-efficiency digital switching self-amplified horn offering extended frequency response and versatile positioning for paging, talkback, background music, and security applications in work sites, schools, parking lots, warehouses, and more. With a built-in amplifier, it delivers a 15W output, a maximum SPL of 124 dB, and a frequency response of 275 Hz to 14 kHz while maintaining low heat dissipation and low current draw. It operates via a 24 VDC power source.
Its weatherproof, UV-protected lightweight plastic housing ensures reliable durability indoors and outdoors, and can be precisely rotated, tilted, and swiveled via the cast aluminum mount. Attachment to an electrical box is supported with the supplied mounting strap. The screw terminals, which are protected by a removable access cover, ensure simple wiring. The SAH15’s volume control is indexed to allow accurate and repeatable level adjustments.
Digital switching amplifier technology provides low DC current draw and heat dissipation compared to conventional analog amplifiers.
The horn loudspeakers can be positioned in any orientation (rotate, tilt, or swivel). The shape of the horn flare provides a controlled dispersion of sound for better intelligibility. They can be used in any environment, indoors or outdoors, without affecting sound quality.
- 5W, 15W, 30W models
- High-efficiency digital switching amplifier technology
- Low DC current draw and heat dissipation
- Unique flare shape provides controlled sound dispersion
- Operates with continuous background music & at high ambient temperatures
- Rotatable horn for vertical or horizontal dispersion
- Cast aluminum swivel mount
Low heat dissipation allows operation with continuous background music and in higher ambient temperatures than conventional analog self-amplified horn speakers
Extended frequency response from 1.6″ diameter voice coil
