Bogen RIO1S

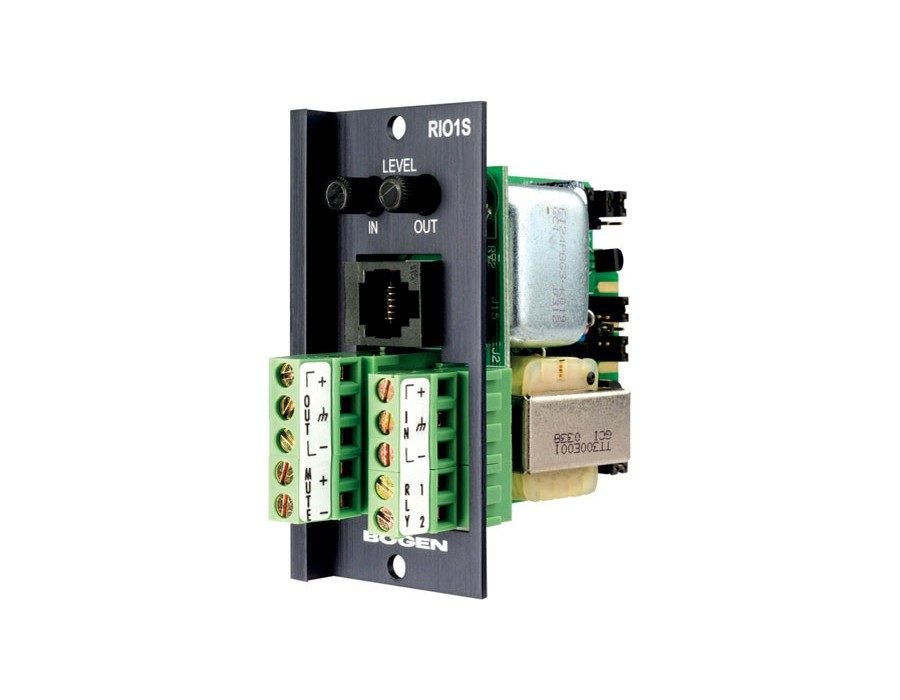

Bogen RIO1S Relay Input/Output Module
The Bogen RIO1S is a multifunctional module with a priority-controlled relay contact, transformer-balanced input, transformer-balanced output and an RJ11 output for direct connection to the override input of a zone paging system.
The RIO1S from Bogen is a Relay Input/Output Module for the Power Vector amplification system. This module has priority-controlled relay circuit, transformer-balanced input/output and RJ11 output for override control of a zone paging system. The RIO1S makes its simple to integrate a Power Vector amplifier with a PCM zone paging system.
Bogen’s RIO1S is a multi-functional module with a priority-controlled relay contact, transformer-balanced input, transformer-balanced output, and an RJ11 output for direct connection to the override input of a zone paging system. The RIO1S provides a convenient way to integrate a Power Vector amplifier with a PCM zone paging system, allowing full use of the Power Vector’s priority structure in zone paging applications for more sophisticated paging capabilities.
- Transformer-isolated, balanced line-level input
- 600-ohm or 10k-ohm (jumper-selectable) input impedance
- Transformer-isolated, balanced line-level output
- 8-ohm, 0.75W output
- Input and output level controls
- Relay responds to jumper selectable priority level
- N.O. or N.C. jumper-selectable relay contact
- External control of priority muting buses
- Input can be muted from higher priority modules, with signal fade back
- Output (normally gate) can be synched with priority relay operation
- Output gating can be defeated via jumper
- RJ11 connection with line output and dedicated N.O. relay contact
(allows easy connection to O/R port of Bogen telephone paging interfaces)
