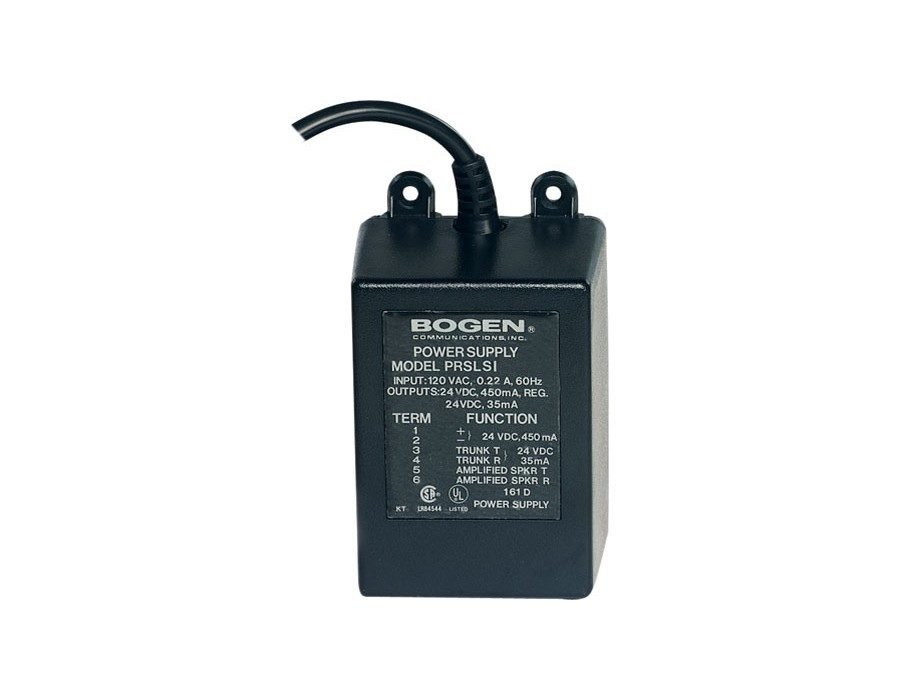

Bogen PRSLSI
Bogen PRSLSI Loop Start Interface/Power
The Bogen PRSLSI Loop Start Interface-Power Supply features 24V talk batter supply for loop start ports and buffered audio output for up to 25 self-amplified speakers. The PRSLSI serves as both a loop start interface and as a 24 V DC power supply. Must be a reseller to purchase this product.
Bogen’s PRSLSI functions as both a loop start interface for small paging systems and as a 24V DC power supply. The PRSLSI includes Tip and Ring terminals for connection to a loop start trunk to provide paging access and enough audio capacity to drive up to 25 self-amplified speaker inputs. The PRSLSI also supplies 9 CU (450 mA) of regulated 24V DC power for external equipment like self-amplified speakers.
The loop start interface and power supply shall be a Bogen Model PRSLSI, or approved equivalent, and shall supply 24V DC at 450 mA (9 CU), as well as Tip and Ring terminals for connection to a loop start trunk, and enough audio capacity to drive up to 25 self-amplified speaker inputs. The PRSLSI shall include a six-terminal barrier strip. The PRSLSI shall include flanges for wall mounting and rubber feet for shelf mounting. The PRSLSI shall measure 2-3/4″ W x 4-1/2″ H x 2-1/2″ D and shall weigh 3 lb. The PRSLSI shall be UL and C-UL listed
