Bogen MPS1

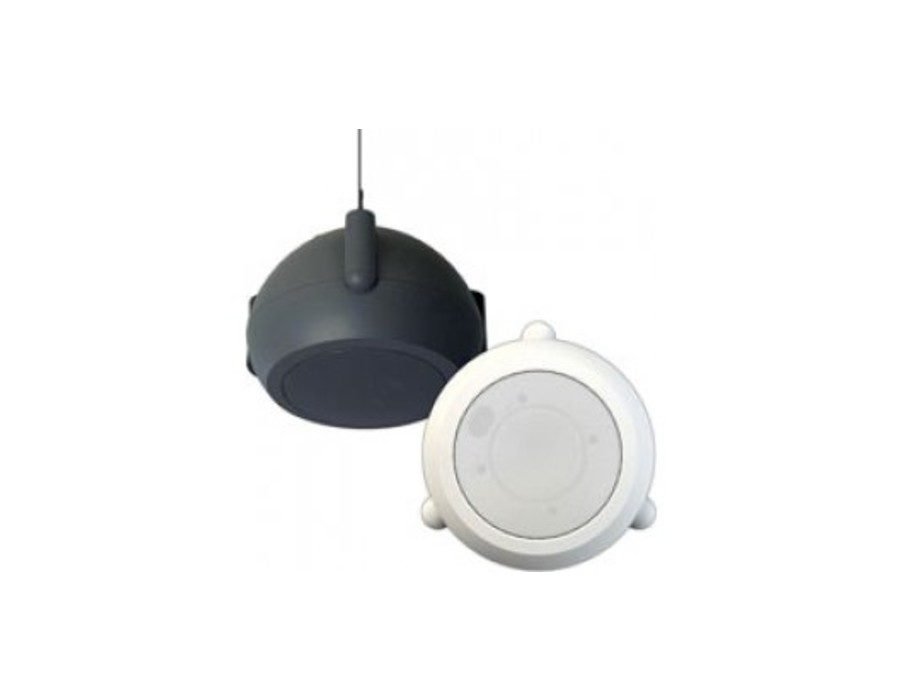

Bogen MPS1 Mini-Pendant Speakers
The Bogen MPS1 Mini Pendant Speaker is an excellent choice for high ceiling and open space environments. The speakers acoustic design delivers superb articulation and high intelligibility where paging and music applications are required. The sound performance technology is wrapped in an attractive, compact, contemporary cabinet enclosure.
The Power Tap selector switch is used to set the appropriate power level or impedance for your system. Rotate the switch until the power level you require lines up with arrow.
The Bogen Mini-Pendant Ceiling Speakers, Models MPS1 and MPS2, are an excellent choice for high ceiling and open space environments. These speakersʼ acoustic design delivers superb articulation and high intelligibility where paging and music applications are required. The sound performance technology is wrapped in an attractive, compact, contemporary cabinet enclosure.
When wiring together multiple MPS1/2 speakers that are set to 16 ohms, it is important to calculate (using Ohmʼs Law) the total load that these speakers present to the amplifier. The total load impedance of the interconnected speakers cannot be lower than the minimum load impedance rating of the low-impedance amplifier. Also, care must be taken to ensure the amplifier cannot overdrive the speakerʼs maximum power rating.
- Wide-dispersion 4-1/2″ driver (MPS1)
- Wide-dispersion 4-1/2″ woofer and 3/4″ tweeter (MPS2)
- Superior sound in a small, compact enclosure
- For 70V and low-impedance systems
- Computer-matched venting systems for extended bass output
- Selectable power taps via rear-mounted control; 32, 16, 8, 4, 2, 1 watts@ 70V, plus 16-ohm setting
- White or Black finish
