Bogen MAX1R

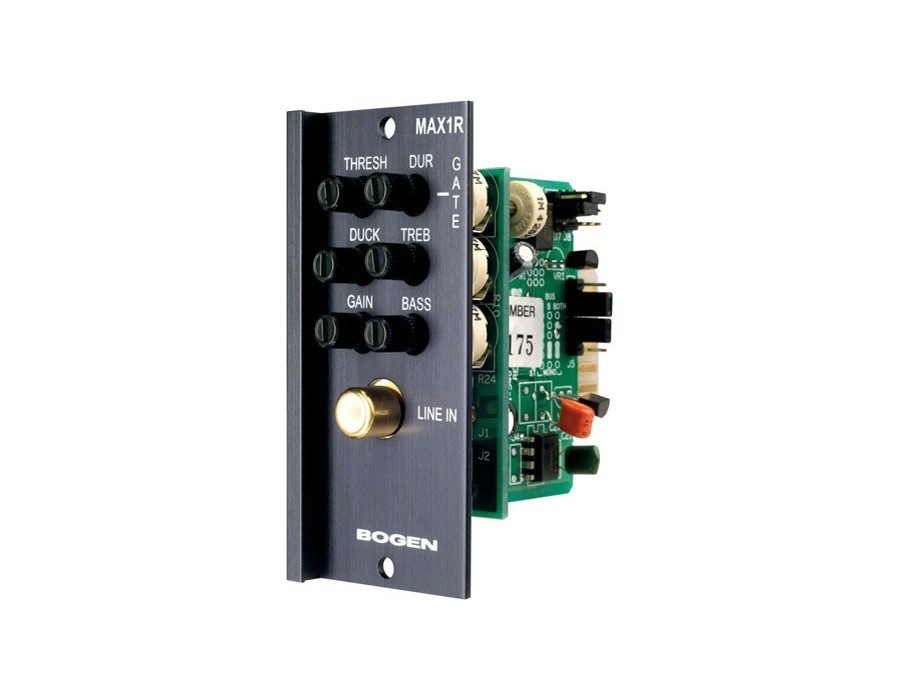

Bogen MAX1R Mono Auxiliary Advanced Input Module
The MAX1R from Bogen is an Unbalanced Mono Input Module with a single RCA input for the Power Vector amplification system. This module has gain and trim controls, bass and treble controls, and variable ducking.
Bogen’s advanced plug-in modules provide a wide range of functions to support a variety of applications.
These modules support different signal-source requirements, including the ability to interface to balanced and
unbalanced high- and low-level inputs, stereo or mono, telco systems, and microphones.
Bogen’s advanced Mono Aux Input module provides a wide range of functions to support a variety of applications such as, Gain/Trim control, Audio Gating with threshold and duration adjustments, and Can be muted from higher priority modules. This module can support different signal-source requirements, including the ability to interface to balanced and unbalanced high- and low-level inputs, stereo or mono, telco systems, and microphones.
The module also has a gain/trim control that will allow the gain to be adjusted from -20 dB to +6 dB relative to 0 dB nominal gain. It has the ability to mute lower priority modules and be muted by higher priority modules. The module is able to assume any of 4 priority levels. It has a continuously variable ducking control that will enable
- Gain/Trim control
- Bass and treble
- Audio Gating with threshold and duration adjustments
- Variable signal ducking when muted or gated
- Fade back from mute level
- 4 levels of available priority
- Can be muted from higher priority modules
- Can mute lower priority modules
