Bogen LB6T
Bogen LB6T

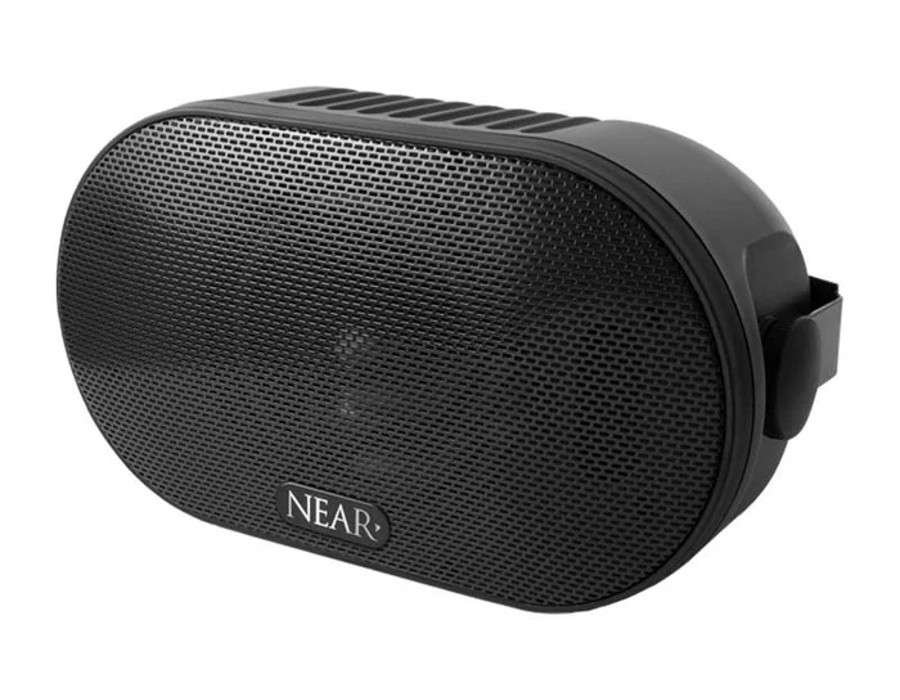

The LB6T is an all-environment loudspeaker from NEAR, with its sleek design and robust construction, offers effortless installation. Utilizing a NEAR exclusive «lever bracket» mount and a pre-terminated waterproof input connector, the speaker minimizes installation effort, enhancing safety and efficiency. Featuring a 6-1/2-inch MDT/MLS woofer and a coincident-mounted 1-inch titanium inverted dome tweeter, the LB6T delivers lifelike sound evenly dispersed over a wide area.
Bogen LB6T Features:
- Purpose-built to be extremely durable in all weather conditions
- 12-year warranty
- Built-in 70V Transformer with selectable power taps of 64-, 32-, 16-, 8- and 4-Watts, plus 8-Ohm bypass
- Anodized metal alloy speaker cones (MDT) maintain spec across a wide spectrum of ambient temperatures for consistent performance in every season
- Coincident driver configuration for symmetrical dispersion in any orientation
- Waterproof (IP68) «Perfect Fit» input connector eliminates long-term connection problems
- MLS Ferrofluid voice coil centering system
- Fluid-sealed gap eliminates corrosion in magnet
- Dual-layer voice coil with inside and outside windings for ultra-low distortion
- Mineral-filled polypropylene cabinet for durability and rigidity
- Advanced polymer cone surrounds resist UV rays, chlorine, fertilizer and salt spray
- Heavy-gauge, powder-coated aluminum mounting bracket with unique (patent-pending) lever-mount cast aluminum clamp
- Specially developed hydrophobic fabric covers port opening to prevent entry of water, debris and small creatures
Bogen LB6T Specifications:
- Frequency Response: 48Hz to 19kHz, +/-2.5dB
- Sensitivity (1W/1m): 88dB
- Dispersion: Minimum 120 Degrees, Horizontal & Vertical
- Power Requirements (LB6 @8 ohms): Up to 150 Watts (Ave); 600W Peak
- Power Requirements (LB6T @70V): 64W, 32W, 16W, 8W, 4W or 8 ohms
- Dimensions (HxWxD): 15.75”x8.58”x 8.9”
- Product Weight (w/mounting yoke & clamp): LB6: 11lbs/4.53kgs; LB6T: 12lbs/5.44kgs
- Maximum SPL @1m (1/2 space): 110dB
- Input Terminations.: Waterproof Plug-In Connector (IP68 Rating)
- Environmental: Engineered to Meet or Exceed Mil-Std-810
- (Humidity, Salt Air, Heat, Cold, Immersion); IEC IP 66
