Bogen IH8A

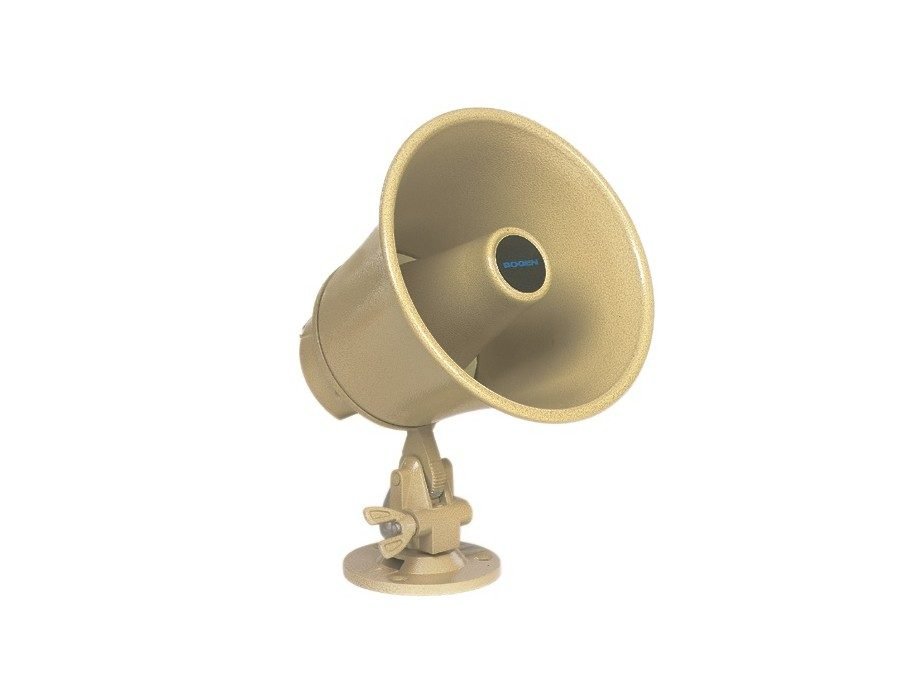

Bogen IH8A Paging Horn
Finished in a textured mocha enamel, the Bogen Communications IH8A is a double reentrant horn-type loudspeaker offering intelligible voice amplification for indoor and outdoor paging applications. Its sturdy metal construction and weatherproof design deliver reliable durability in a variety of environments. With a 15W power rating, it produces a high maximum SPL of 120 dB. The 12″ connecting cable ensures easy installation. The IH8A comes equipped with a detachable mounting bracket for easy and precise horizontal or vertical positioning.
Excellent intelligibility, handsome compact styling, and all metal, weatherproof construction make the model IH8A perfect for use indoors or outdoors with Bogen sound equipment. A detachable mounting bracket, which includes a wing-nut locking device, provides precise positioning of the horn in the vertical and horizontal planes.The unit is finished in textured mocha enamel.
The Bogen Model IH8A is a double reentrant horn-type loudspeaker designed for paging applications.
Excellent intelligibility, handsome compact styling, and all metal, weatherproof construction make the model
IH8A perfect for use indoors or outdoors with Bogen sound equipment.
A detachable mounting bracket, which includes a wing-nut locking device, provides precise positioning of
the horn in the vertical and horizontal planes.The unit is finished in textured mocha enamel.
The loudspeaker shall be a Bogen Model IH8A reentrant horn-type loudspeaker, or approved equivalent,
providing a frequency response from 350Hz to 12kHz. Input impedance shall be 8 ohms. Rated power output shall be 15 watts. Dispersion shall be 130°. Sound pressure level, measured four feet on axis at rated
output, shall be at least 120dB.
The loudspeaker shall be of weatherproof, all metal construction, with driver enclosed within a waterproof
housing. A 12-inch connecting cable shall be provided.
An all-purpose mounting bracket shall provide precise positioning in the vertical and horizontal planes.
Bracket and loudspeaker shall be finished in textured mocha enamel. The unit shall measure 6-1/4″ dia. x
6″D. The product weight shall be 2-1/2 lbs.
