Bogen AT10A

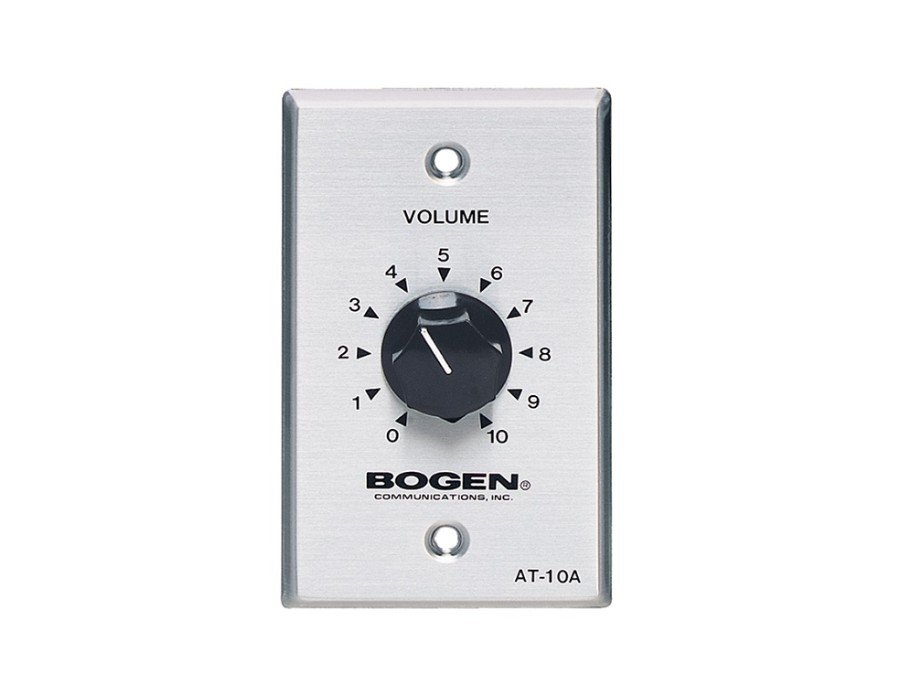

Bogen AT10A 10W Attenuator
The AT10A 10W Attenuator from Bogen can control up to 10W of speakers within a 25V or 70V system. Control local volume without affecting the main volume setting. Ten attenuation steps and an off setting make it easy to find the perfect setting. Installation is simple as this control mounts in a single electrical box.
The AT10A attenuator allows the output level of a network of 25V or 70V speakers to be controlled from a wall-mounted volume control, without affecting overall amplifier volume settings. Volume reduction takes place in 3 dB increments except for the two lowest settings, which provide 6 dB reduction increments. The attenuator provides a choice of 10 stops and an “off” position, and is capable of controlling up to 10-watt speaker systems. The attenuator measures 2-3/4″ W x 4-1/2″ H x 2-3/4″ D and weighs 13 oz.
- Adjusts loudspeaker output levels on 25V and 70V systems
- Model controls up to 10-watt speaker systems
- 10 attenuation steps and an off setting
- Attenuation in 3 dB increments except for two lowest settings, which provide 6 dB reduction increments
- Mounts in standard single electrical box
- Simple connections
These 10-step plus “off” speaker attenuators allow the volume of a network of 25V or 70V speakers to be controlled from a remote location. The AT10A attenuator can handle speaker loads of up to 10W (max.) and the AT35A attenuator can handle speaker loads of up to 35W (max.). The AT10A fits into a single gang electrical box and the AT35A into a double gang electrical box. Volume reduction takes place in 3 dB increments except for the 2 lowest settings, which provide 6 dB reduction increments. A speaker “off” (“0”) position is also provided.
