Bogen ASWG1/DK

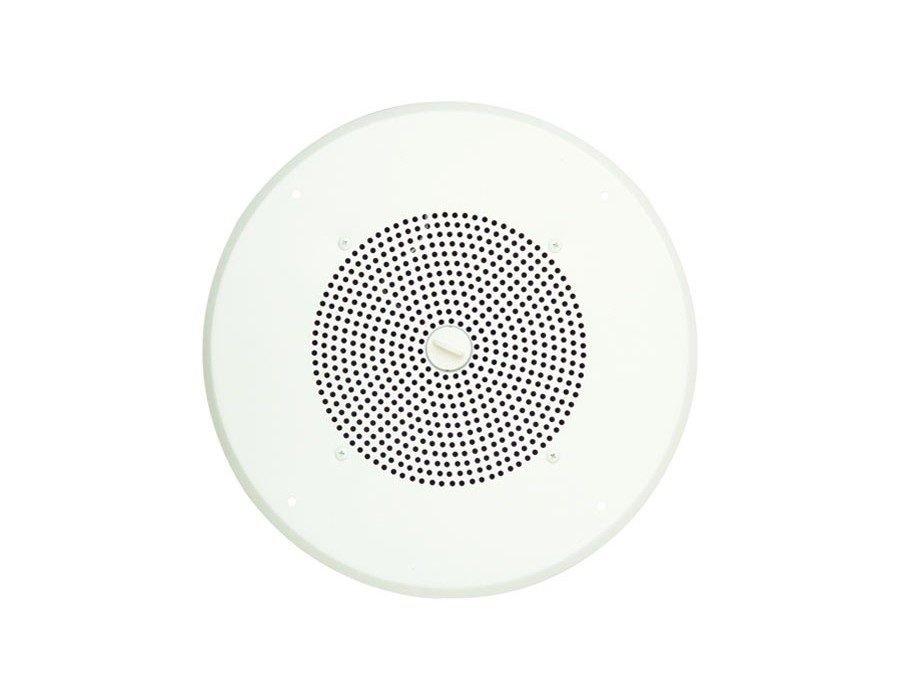

Bogen ASWG1/DK Self-Amplified Ceiling Speaker Assemblies
Finished in off-white, the Bogen Communications ASWG1DK is an 8″ 1W amplified speaker assembled on a ceiling grille for paging, talkback, background music, and security applications in schools, warehouses, offices, and more. With a built-in amplifier and an 8″ cone-type loudspeaker, it delivers a 1W output, a maximum SPL of 92 dB, and a frequency response of 100 Hz to 10 kHz. It operates via a 24 VDC power source.
Bogen Model AS1 is an 8″, cone-type loudspeaker, complete with a built-in 1-watt amplifier and volume control knob. Volume control knob allows adjustment of the paging level at each speaker location in the system; detachable knob available on ASUG1DK and ASWG1DK. The speaker is available unmounted or fully assembled in a wall baffle (Model ASWB1), on an off-white ceiling grille (Model ASWG1 & ASWG1DK), or on a bright white ceiling grille (ASUG1 & ASUG1DK).
Integrate the ASWG1DK with a standard 600-Ohm telephone line, and adjust the volume via the detachable knob without having to remove the speaker or grille. The grille is constructed of steel to maintain rigidity, and features a durable enamel coating.
The speaker is available unmounted or fully assembled in an Off-white ceiling grille (Model ASWG1 & ASWG1DK), or on a Bright White ceiling grille (ASUG1 & ASUG1DK).
- 8″ Cone speaker
- Self-contained 1-watt amplifier
- Interfaces with standard 600-ohm telephone line
- Available unmounted (AS1)
- Available on an Off-white semi-gloss enameled ceiling grille (ASWG1, ASWG1DK), or Bright White finish ( ASUG1, ASUG1DK)
- Ceiling assembly with fixed front-mounted volume control knob (ASUG1, ASWG1)
- Ceiling assembly with detachable front-mounted volume control knob (ASUG1DK, ASWG1DK)
