Biamp Tesira HD-1
Biamp Tesira HD-1

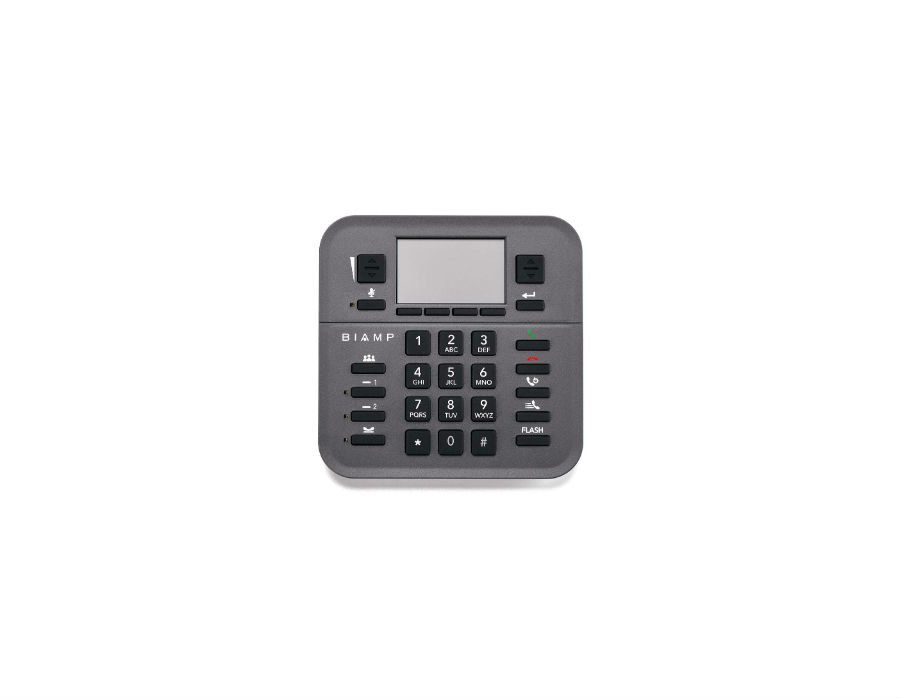

The Tesira HD-1 is a dialer for Tesira audio DSPs, providing access to all of the dialing functions within Tesira. With the look and feel of a traditional telephone dial pad, the HD-1 makes installations less expensive, easier to commission, and less complicated to operate. The four context (soft) buttons can be assigned to control functions in Tesira software. The HD-1 is compatible with Tesira SERVER and SERVER-IO with STC-2 or SVC- 2 cards installed, as well as all models of TesiraFORTÉ VT and TesiraFORTÉ VT4 devices.
- Telephony control over Ethernet
- 12-button dial pad
- Redial, call volume adjustment, mute, hold, and numerous other telephony functions
- Four context (soft) buttons can be assigned to control functions
- Propagates privacy mute state to other devices
- Internal universal power supply
- 100 programmable speed dial numbers; entries can be updated directly on the phone or in software
- Powered by PoE (IEEE 802.3at Class 1, 4W)
- Covered by Biamp Systems’ five-year warranty.
BENEFITS
• Simple, intuitive design
• One-cable installation
• Configurable via Tesira software
• Access to all Tesira telephony functions
• Maintains the look and feel of a traditional enterprise phone
FEATURES
• Telephony control over Ethernet
• 12-button dial pad
• Redial, call volume adjustment, mute, hold, and
numerous other telephony functions
• Four context (soft) buttons can be assigned to control
functions
• Propagates privacy mute state to other devices
• 100 programmable speed dial numbers; entries can be
updated directly on the phone or in software
• Powered by PoE (IEEE 802.3at Class 1, 4W)
• Covered by Biamp Systems’ five-year warranty
