Biamp Parlé TCM-XA Ceiling Microphone
Biamp Parlé TCM-XA Ceiling Microphone

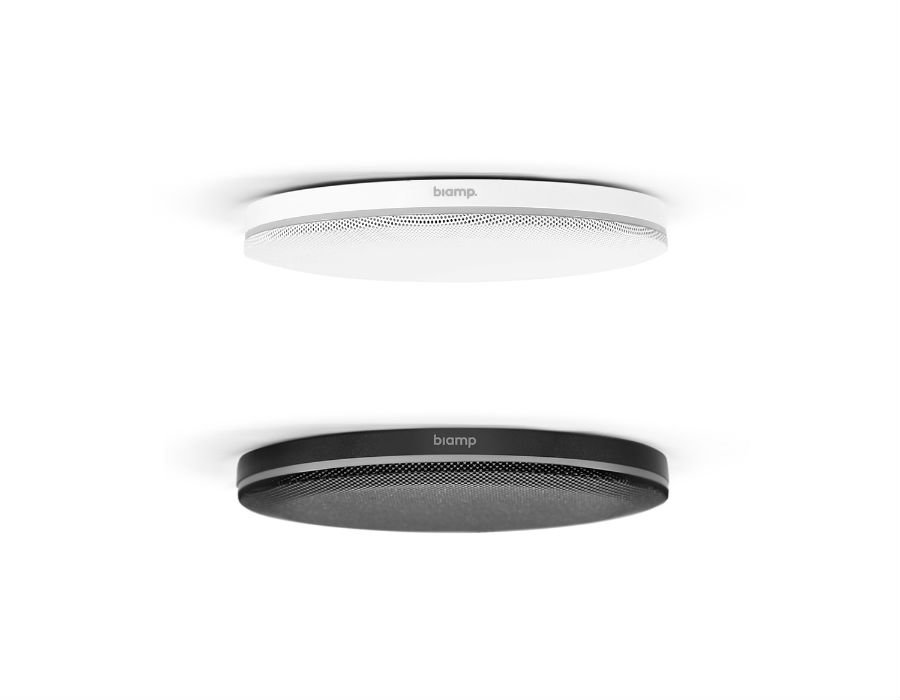

The Parlé TCM-XA is an AVB low-profile ceiling microphone and PoE+ (IEEE 802.3at Class 4, 30W) amplifier for use in Tesira systems. Comprising a network box and a ceiling microphone, each microphone includes Beamtracking technology with four 90-degree zones, providing full 360-degree coverage of the meeting space. Each network box has its own digital signal processing module and comes with an additional RJ-45 connector to add an optional TCM-XEX. A maximum of two microphones are permitted per network box (one TCM-X or TCM-XA with TCM-XEX). The 2-channel PoE+ amplifier includes an internal limiter, selectable power, and a burst mode to handle peak signals.
- Measures 5.75 inches (146mm) in diameter
- Uses only one channel of AEC per mic
- Network box includes DSP for Beamtracking and a PoE+ amplifier:
- Two channels
- Burst mode to handle peak loads; supports up to 40W (4Ω) or 30W (8Ω) per channel
- Software-selectable power vs. channel count
- Includes internal limiter function
- Beamtracking technology works out-of-box without any lobe aiming or room mapping
- Single cable connection via CAT cable
- LED mute status indicator
- Available in either black or white
- Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
- Additional RJ-45 connection
- CE marked, UL listed, and RoHS compliant
- Covered by Biamp Systems’ five-year warranty
