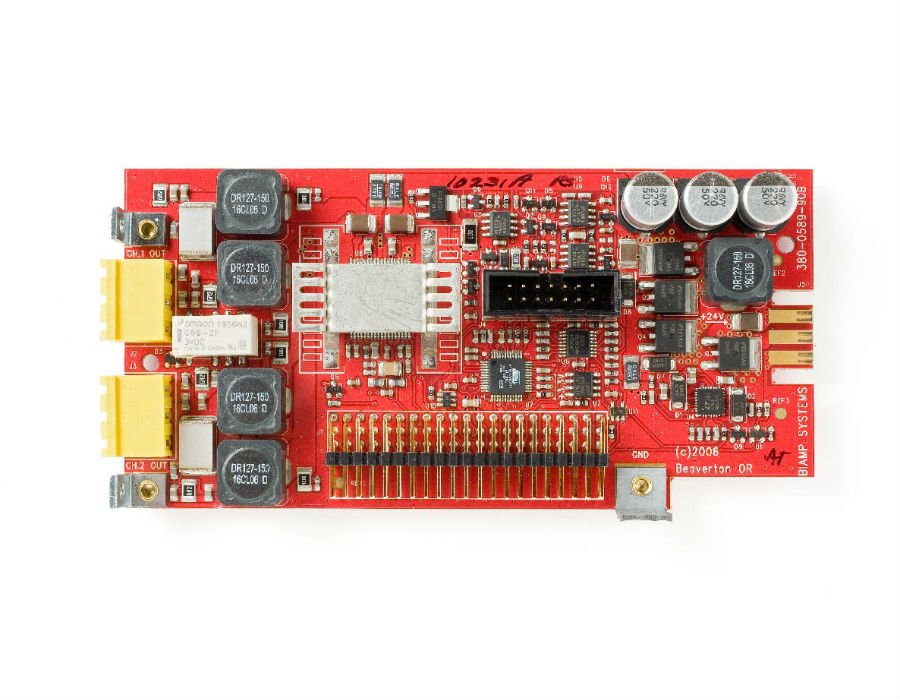

Biamp Audia PA-2
Biamp Audia PA-2
Dual-Channel Power Amplifier Cards
PA-2 amplifier cards allow AudiaFLEX to directly power 4, 6, or 8 ohm speakers. The output power is software configurable from 5 to 30 watts dual-channel and from 10 to 60 watts mono-bridged. An
- Directly powers 4, 6, or 8Ω speakers
- Software configurable from 5 to 30 watts dual-channel and from 10 to 60 watts mono-bridged
- Upgraded AudiaFLEX power supply provides 120 watts of power, for up to twelve PA-2 cards
Invert function allows 180° signal polarity reversal
• Selectable clip-limiter function
• Peak output indicator
• RoHS compliance and AES grounding practices
• Covered by Biamp Systems’ five-year warranty
ARCHITECTS & ENGINEERS SPECIFICATION
The power amplifier card shall be a two-channel card for AudiaFLEX hardware. Each card shall provide two balanced speaker outputs on a plug-in barrier strip connector. Software adjustments of individual outputs shall include: mute, gain, signal invert, clip-limit. Configurable two-channel power ratings shall be 2×5 watts, 2×10 watts, 2×20 watts, 2×30 watts into 8, 6, or 4 ohms. Configurable mono-bridge power rating shall be 1×10 watts, 1×20 watts, 1×40 watts, and 1×60 watts into 8, 6, or 4 ohms. Performance specifications shall be: THD+N <0.35% (20Hz~20kHz); signal-to-noise >89dB; crosstalk <-70dB at 1kHz. The power amplifier shall have load and thermal fault protection. Up to twelve power amplifier cards may be installed into a single AudiaFLEX unit. The power amplifier card shall incorporate AES48- 2005 Grounding & EMC practices, and shall be compliant with EU Directive 2002/95/EC, the RoHS directive. Warranty shall be 5 years.The power amplifier card shall be a PA-2 Card for AudiaFLEX.
