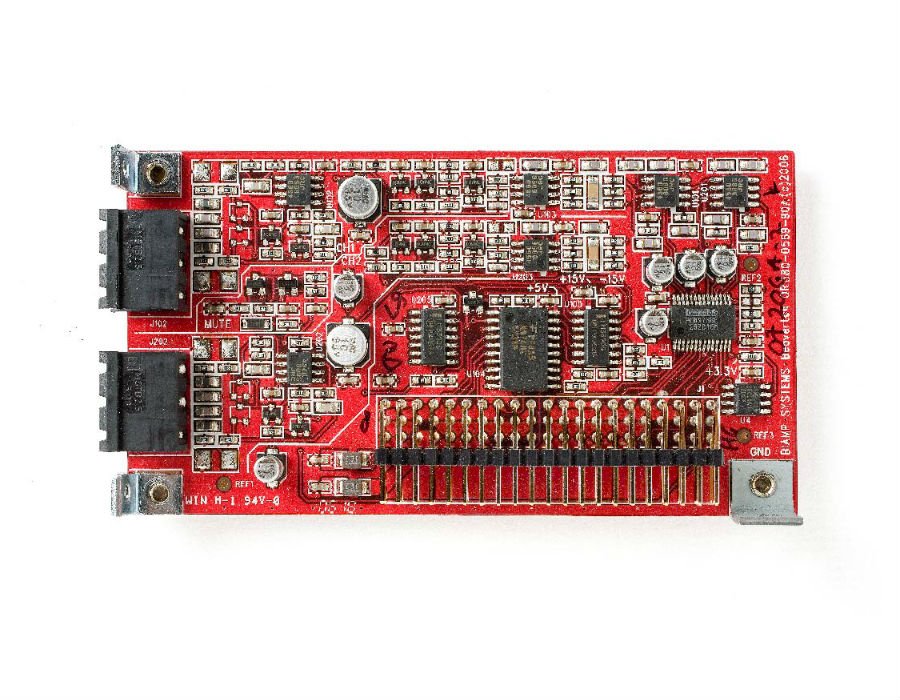

Biamp Audia OP-2E
Biamp Audia OP-2E
Dual-Channel Mic/Line Output Cards
OP-2e output cards allow each AudiaFLEX installation to have the quantity and type of outputs required. Each OP-2e Card provides two channels of mic/line output, as part of AudiaFLEX hardware. Outputs are balanced, and are provided on plug-in barrier strip connectors. Software control of individual outputs includes: mute; level; signal invert; and full-scale output reference.
- Each card provides 2 mic/line output channels
- Balanced outs on plug-in barrier strip connectors
- -100~+12dB level fader range for volume control
- Selectable ref level for best interface/performance.
ARCHITECTS & ENGINEERS SPECIFICATION
The mic/line outputs shall be a two-channel output card for AudiaFLEX hardware. Each output channel shall provide two balanced analog mic/line outputs on plug-in barrier strip connectors. Software adjustment of individual outputs shall include: mute; level; signal invert; and selectable output reference level. Digital-to-Analog conversion shall be 24-bit, with a sampling rate of 48kHz. Performance specifications (20Hz~20kHz) shall be: Frequency Response +0/- 0.25dB; THD+N < 0.0035%; and Dynamic Range > 110dB. The mic/line output card shall incorporate AES48-2005 Grounding & EMC practices, and shall be compliant with EU Directive 2 002/95/EC, the RoHS directive. Warranty shall be 5 years. The mic/line outputs shall be an OP-2e Output Card for AudiaFLEX.
