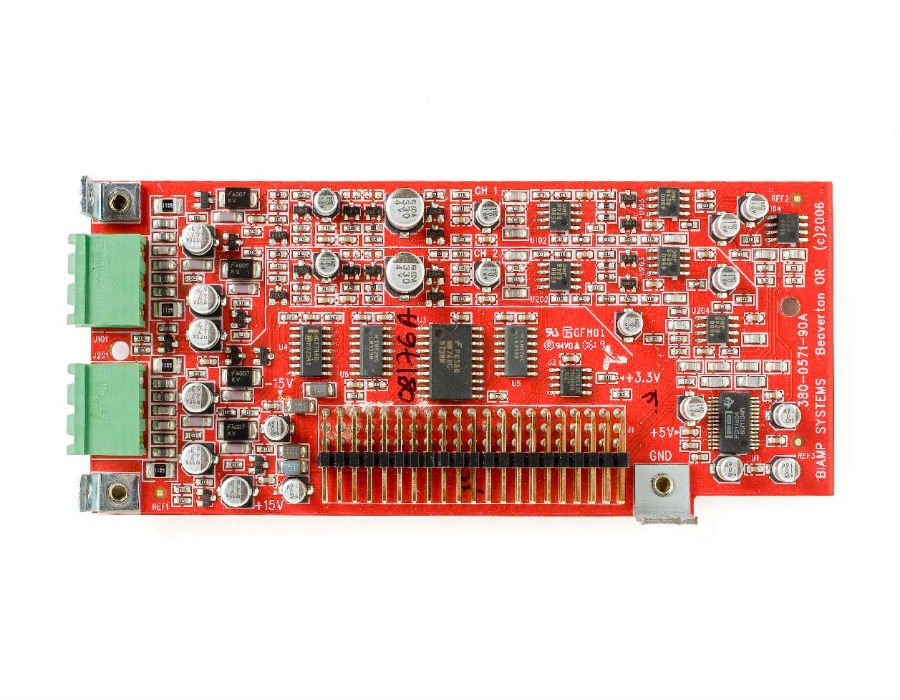

Biamp Audia IP-2
Biamp Audia IP-2
Dual-Channel Mic/Line Input Cards
IP-2 input cards allow each AudiaFLEX installation to have the quantity and type of inputs required. Each IP-2 Card provides two channels of mic/line input, as part of AudiaFLEX hardware. Inputs are balanced,
and are provided on plug-in barrier strip connectors. Software control of individual inputs includes: gain w/ peak indication; +48V phantom power; mute; level; and signal inve
- Each card provides 2 mic/line input channels
- Balanced inputs on plug-in barrier strip connectors
- 0~66dB gain range for microphone or line sources.
ARCHITECTS & ENGINEERS SPECIFICATION
The mic/line inputs shall be a two-channel input card for AudiaFLEX hardware. Each input channel shall provide two balanced analog mic/line inputs on plug-in barrier strip connectors. Software adjustment of individual inputs shall include: gain w/ peak indication; +48V phantom power; mute; level; and signal invert. Analog-to-Digital conversion shall be 24-bit, with a sampling rate of 48kHz. Performance specifications (20Hz~20kHz) shall be: Frequency Response +0/-0.4dB; THD+N < 0.006% (line) < 0.04% (mic); EIN -125dBu; and Dynamic Range > 108dB. The mic/line input card shall incorporate AES48-2005 Grounding & EMC practices, and shall be compliant with EU Directive 2002/95/EC, the RoHS directive. Warranty shall be 5 years. The mic/line inputs shall be an IP-2 Input Card for AudiaFLEX
