Biamp EEC-4
Biamp EEC-4

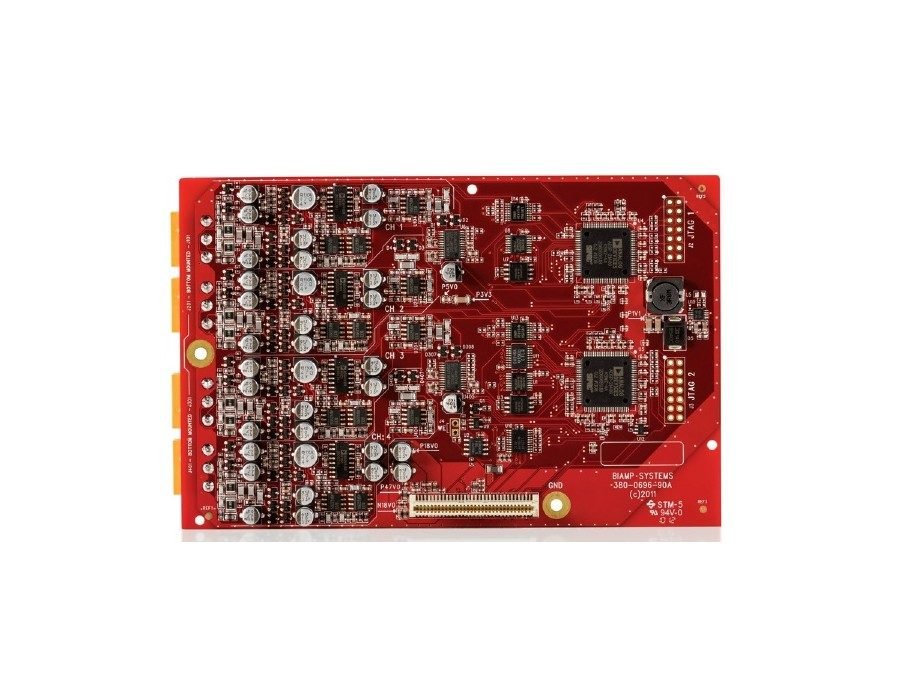

The Tesira EEC-4 is an expander card with 4 analog input channels for use with the Tesira EX-MOD device. The EEC-4 is one of three optional cards that can be mounted in Tesira EX-MOD. Each EEC-4 provides four channels of mic or line level audio input with AEC (Acoustic Echo Cancellation). The inputs are electrically balanced and provided on plug-in barrier strip connectors. Software control of each input includes gain with clip indicator, +48V phantom power, mute, level, and signal invert.
- 4-channels of balanced mic or line level input with AEC (Acoustic Echo Cancellation)
- Plug-in barrier strip connectors
- 0 to 66dB gain, adjustable in 6dB increments
- Clip indicator
- +48V Phantom Power
- -100dB to +12dB fader range for level
- Signal invert for reverse polarity.
