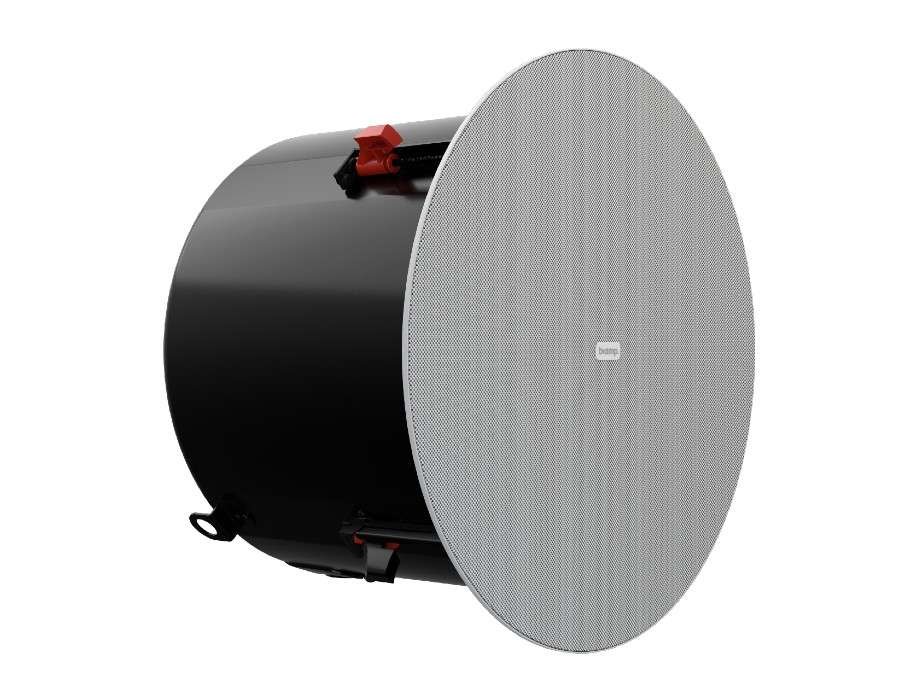

Biamp DX-IC10SUB-W
Biamp DX-IC10SUB-W
The Desono DX-IC10SUB ceiling mount subwoofer provides a powerful, high-impact bass response intended to augment any combination of Desono DX full-range models. By including a complement of DX-IC10SUBs into a distributed system, musical results that equal or exceed that of much larger and more costly surface-mount systems can readily be achieved. The DX-IC10SUB’s clean, clear bass response provides a compelling attraction for shoppers in a retail environment, and a memorable experience for bar, pub, and restaurant patrons.
Dependent on program content and the size of the full-range DX models, the ratio of DX-IC10SUBs to full-range models may vary from as few as 1:6 to as many as 1:1. For example, one DX-IC10SUB will provide a strong supporting bass response for six DX-IC4s, while four DX-IC10SUBs will better complement six of the more powerful DX-IC8s or DX-IC10s.
Patent-pending SpringLock™ clamps allow singlehanded placement to speed installation and reduce labor time. The SpringLock spring-loaded clamps support the back can on the included tile rails and snap-on C-ring, so that the installer can just tighten the clamps, securing it in the ceiling. A magnetic grille and front-face wattage selector switch enables quick adjustment of tap levels,
while the high-power internal autoformer permits full power output with 70V or 100V lines. A variety of installation accessories are available to accommodate different ceiling materials.
FEATURES
• High intelligibility with exceptional uniform coverage
• High-impact bass response
• Fast installation with SpringLock™ mounting clamps
• Attractive edgeless magnetic grille design
• Conduit knock-outs on the input cover meet Chicago plenum air space requirements
APPLICATIONS
Large Conference Rooms · Houses of Worship
Theaters · Sports Facilities · Health Clubs
Convention Centers · Auditoriums
Malls · Airports
The D10SUB ceiling mount subwoofer provides powerful, high impact bass response intended to augment any combination of C or D SERIES full-range models. By including a complement of D10SUB’s into a distributed system, musical results that equal or exceed that of much larger and more costly surface-mount systems can readily be achieved. The D10SUB’s clean, clear bass response provides a compelling attraction for shoppers in a retail environment, and a memorable experience for bar, pub and restaurant patrons.
AMPLIFIED LOUDSPEAKER CONTROLLERS
The Community ALC404D is recommended for this product. Higher power ALC models may be used safely as well.
