Biamp Tesira DAN-1
Biamp Tesira DAN-1

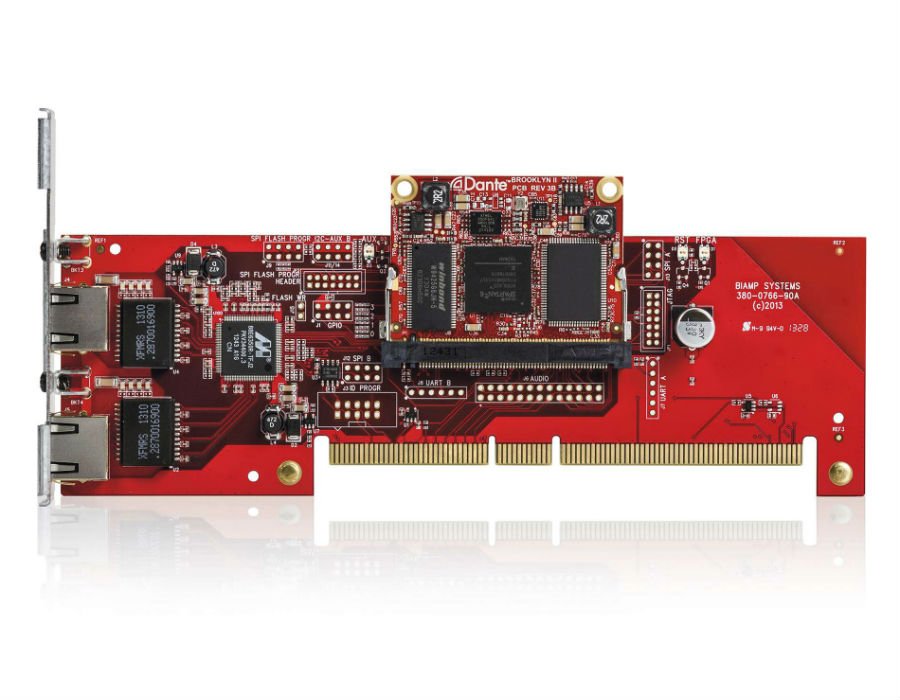

The Tesira DAN-1 is an optional digital audio networking card for Tesira SERVER or SERVER-IO and provides an interface to other audio devices utilizing the Dante™ networking protocol from Audinate®. The DAN-1 card can be factory installed or installed in the field. Featuring the Brooklyn II module, the DAN-1 allows for up to 64 x 64 channels of digital audio into and out of a Tesira system.
- 64 x 64 channels of Dante
- Dual RJ-45 connections for Primary and Secondary
- Up to 32 x 32 simultaneous flows
- Explicit Dante Input and Output blocks in Tesira Software
- Can be installed in conjunction with AVB-1 and/or SCM-1
- System configuration and control via Ethernet
- Covered by Biamp Systems’ five-year warranty.
The Tesira DAN-1 is a modular Dante digital audio networking card for use with Tesira SERVER and SERVER-IO devices. Dante is a proprietary media networking solution developed by Audinate and is fully compliant with IEEE standards on 100Mbps and Gigabit networks. The DAN-1 allows a Tesira system to send and/or receive digital audio from other Dante endpoints over an Ethernet network utilizing standard network switches.
The DAN-1 allows up to 64×64 channels of interconnectivity with any other Dante device, including non-Biamp hardware. Audinate’s Dante Controller software is required to complete stream assignments for a Tesira configuration. Sample rates are 44.1/48kHz by default, other rates may be available as determined by Dante Controller and connected devices. A Dante endpoint can simultaneously send and receive streams from more than one device. A secondary Dante port is available for network redundancy.
Tesira DAN-1 hostnames will be unique, following the convention TesiraServernnnnnnnn-Slotnn where the Tesira’s Serial Number and Card Slot Number are appended to the string «TesiraServer».
- A single DAN-1 card is allowed per SERVER.
- Up to (2) DAN-1 cards are allowed per SERVER-IO.
