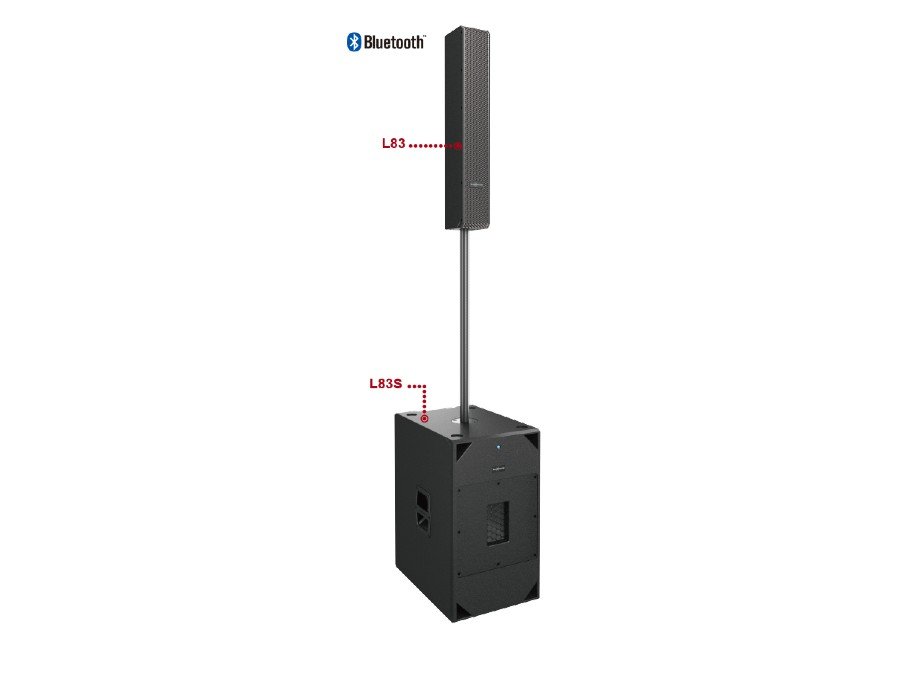

AUDIOCENTER L83+L83S Column System
L83+L83S system is a compact multi-purpose active DSP column system consisting of a passive full-range column speaker L83 and an active DSP controlled dual 12″ subwoofer L83S.
L83 passive full-range column speaker is with 8pcs 3” neodymium full-range drivers. The drivers in L83 are arranged by elaborate calculation and Phycal™ technology to improve the coverage of vertical beam. With elaborate acoustic design, same drives in the cabinet work as one integrative full range speaker system, which can achieve perfect joint of frequency response and excellent sound performace.L83 can meet the applications in different venues and complex space.
L83S is an active DSP controlled compact subwoofer with 2pcs 12″ customized Audiocenter ferrite drivers and Class D amplifier module. The system works efficiently and has built-in Bluetooth that supports multiple signal inputs.
L83S has been carefully tested. With elaborate acoustic design, innovative FTF™ LF driver design and extensive testing, the cabinet is with three-order band-pass filter. By coupling the system continually and overlaying the
resonances, the LF efficiency is improved significantly.
L83+L83S is a plug and play column system with easy set up. The presets are made with a lot of testing. The system can be put in various applications.
| Type | Active DSP-controlled Column Speaker System |
| Frequency Response(-6dB anechoic chamber) | 40Hz-19kHz |
| Maximum CalculatedSPL/1M(Continuous/Peak) | 129dB/135dB |
| Subwoofer | Customized driver, 2pcs 12” driver |
| LF Driver | Customized full-range driver, 8pcs 3” drivers |
| HF Driver | Customized driver, 2pcs 1” drivers |
| Horizontal Coverage Angle(Symmetrical) | 110° |
| Vertical Coverage Angle(Symmetrical) | 10° |
| DSP |
| Processor Crossover | 96KHz signal sampling frequency, 24bit precision controlled by DSP |
| Class D amplifier |
| Power | 4000W |
| Frequency Response | 20Hz-20KHz(±0.5dB) |
| Intermodulation Distortion | ＜0.05% |
| Total Harmonic Distortion | ＜0.05% |
| Protection | DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection |
| Cooling System | Fans + air convection |
| Output/Input |
| Signal Input | 2×Combo (female XLR & Mono jack 6.35), 1×Stereo Bluetooth |
| Signal Output | 1× male XLR |
| Amplifier Output Link L83 MK2 | 1× Speaker connector |
| Column input Link L83S MK2 | 1× Speaker connector |
| Power Input | 3 pin power socket |
| Working Voltage | 100V~130V or 220V~240V（±10%，50/60Hz） |
| Cabinet |
| Cabinet Material | CNC made of excellent wood |
| L83S MK2 base bracket hole | M20 base Φ35mm |
| Cabinet Color | Black is standard and default color. Consult with Audiocenter sales team for other customized colors |
| Dimension(W×H×D) |
| L83 MK2 | 135×1200×165mm |
| L83S MK2 | 374x690x538mm |
| Height for 1pc L83 MK2+1pc L83S MK2+Pole | 1896mm |
| Net Weight |
| L83 MK2 | 10.5Kg |
| L83S MK2 | 34.0Kg |
