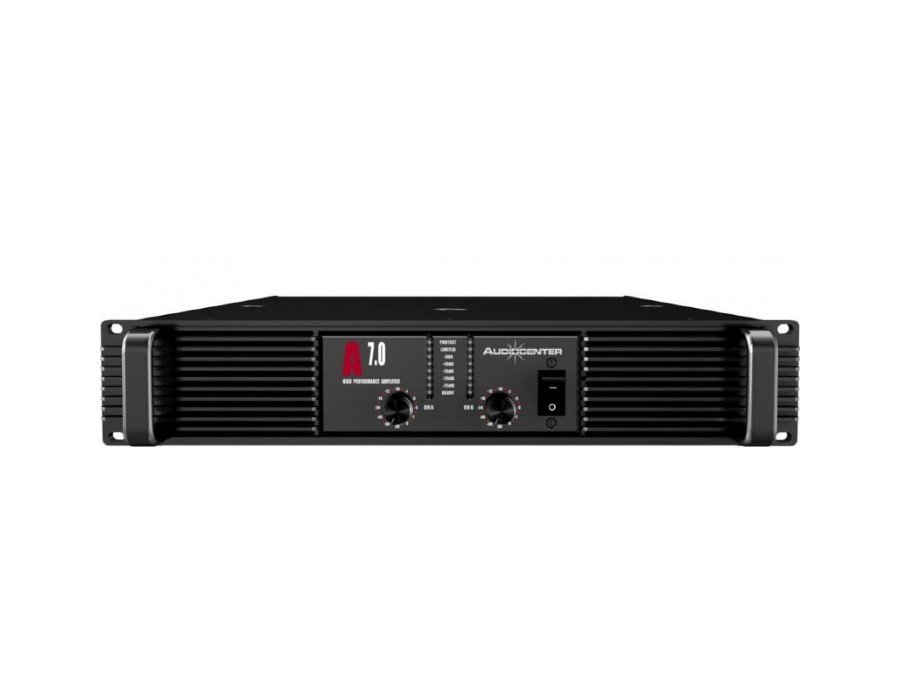

AUDIOCENTER A7.0
AUDIOCENTER A7.0
A7.0 offers 800 watts at 8Ω stereo. Each channel works at 2Ω to satisfy all requirements. A7.0 adopts Audiocenter latest Class H+ circuit to eliminate the Class H cross switching distortion A7.0 adopts carefully selected components like toroidal transformers, high-quality capacitors, Onsemi transistors, Neutrik input connectors and superior audio wires, etc. High quality materials and technology ensure the reliability and safety, which makes A7.0 suitable in any kind of extremely cold, hot or wet working environment. It can be widely used in fixed installation and touring performance such as entertainment venues, multi-functional hall, museum, religious venue, commerce site, lecture hall, wedding ceremony, etc.
| Rated Power(20Hz-20KHz, <0.1%THD) | 2×800W@8Ω stereo 2×1250W@4Ω stereo 2×1500W@2Ω stereo 2500W@8Ω bridge 3000W@4Ω bridge |
| A-Guard Protection System | DC protection /Short circuit protection /Smart overheat management /Overheat protection /Input overload protection /Output overload protection /Soft startup protection / Limiter protection Up to 9V |
| Frequency Response(1W 8Ω stereo) | 20Hz-20KHz(±0.5dB) |
| Sensitivity | 1V |
| Input Connectors Output Connectors | NEUTRIK® Famale XLR & Jack Binding post & Speakon NL 4MP |
| Filter Capacitor Capacity | 10000μf / 80V×8 |
| Input Impedance | Balanced 20KΩ/ Unbalanced 10KΩ |
| Crosstalk(20Hz-20KHz, Rated power 8Ω) | ≥60dB |
| S/N Ratio(Rated power 8Ω, A weighted) | ≥100dB |
| Damping Factor(1KHz＆8Ω) | ≥350dB |
| Intermodulation Distortion(20Hz-20KHz, half power) | ≤0.1% |
| Total Harmonic Distortion(20Hz-20KHz, Rated power 8Ω) | ≤0.1% |
| Phase Response(1W＆8Ω, 20Hz-20KHz) | 20Hz+4° 20KHz-12° |
| Slew Rate | ≥35V/μs |
| Output Circuitry | Class H+ |
| Power Consumption(Dual channel driven 4Ω, 1/8RMS/230V) | 3.8A |
| Rack Space | 2U |
| Cooling | Back to front venting, mandatory cooling |
| Dimension(W×H×D) | 483×88×456mm |
| Net Weight | 22.0Kg |
