Atlona AT-OME-ST31A-KIT
Atlona AT-OME-ST31A-KIT

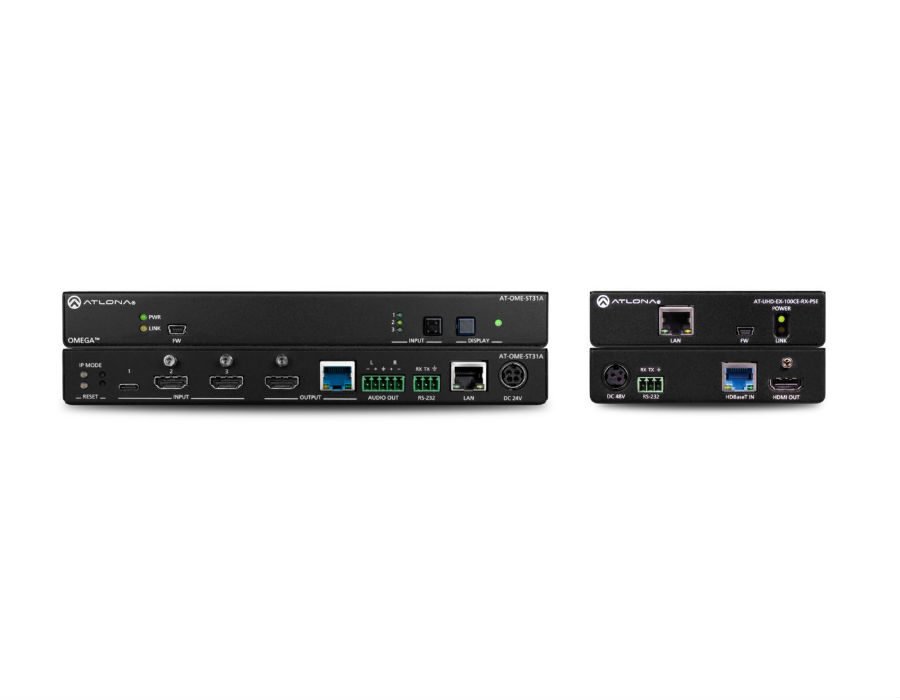

The Atlona AT-OME-ST31A-KIT is an HDBaseT transmitter and receiver combination that delivers a complete integration solution with 4K video extension, automatic switching for the HDMI and USB-C inputs, and automatic display control. It includes the AT-OME-ST31A three-input HDBaseT switcher and AT-UHD-EX-100CE-RX-PSE HDBaseT receiver. The OME-ST31A features audio de-embedding, mirrored HDMI and HDBaseT outputs, and selectable 4K downscaling to 1080p for the HDMI output. The UHD-EX-100CE-RX-PSE features a compact, low-profile enclosure that can easily be concealed behind a wall-mounted display or above a projector. This HDBaseT extender solution extends AV, Ethernet, and control up to 330 feet (100 meters) over category cable.
The transmitter is remotely powered by the receiver via Power over Ethernet (PoE). This makes the OME-ST31A-KIT ideal for applications in which the transmitter needs to be installed under a meeting table or in a lectern where local AC power may not be available.
- HDBaseTTM extender kit for AV, Ethernet, power, and control up to 330 feet (100 meters)
- 3×1 HDBaseT switcher with HDMI® and USB-C® inputs
- USB-C input for AV and device powering (does not support data; requires optional AT-PS-245-D4 power supply for USB-C power)
- 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
- Mirrored HDMI output at transmitter with selectable 4K to 1080p downscaling
- Transmitter powered by receiver over HDBaseT
- Automatic input selection and automatic display control
- Audio de-embedding at transmitter and receiver
