Atlas Sound C803AT87
Atlas Sound C803AT87

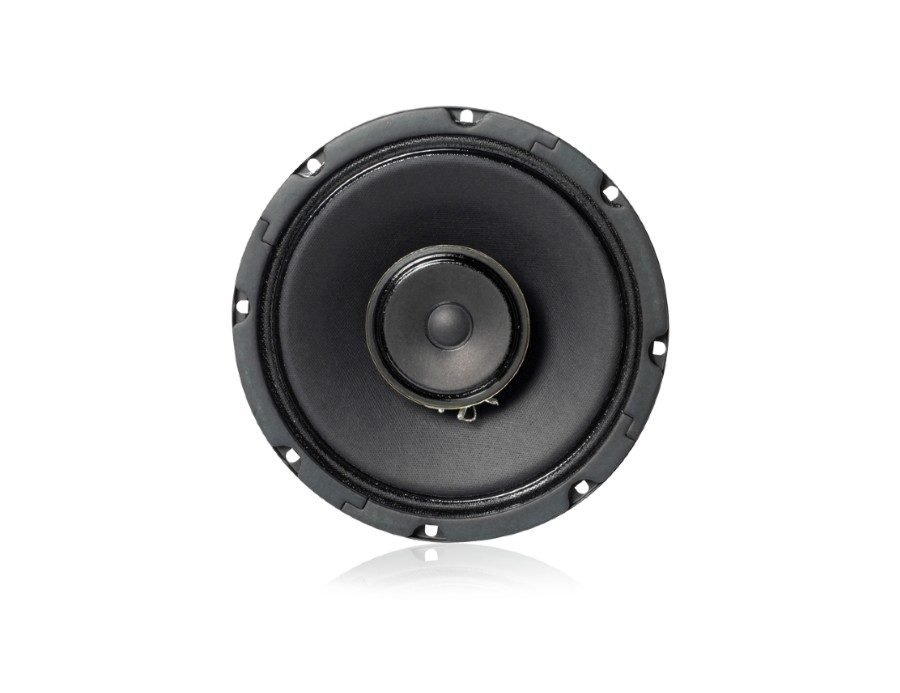

Model C803AT87, A high-quality 16-watt speaker with a factory-installed 70.7V 8W line matching transformer
Model C803AT87 utilizes a post mounted tweeter which adds strength to the assembly and provides an attractive appearance. This coaxial speaker features a 70Hz – 15.5kHz, frequency response and a broad, uniform dispersion pattern of 120°. Such provisions allow for highly intelligible sound reproduction and better distribution for high-quality sound systems.

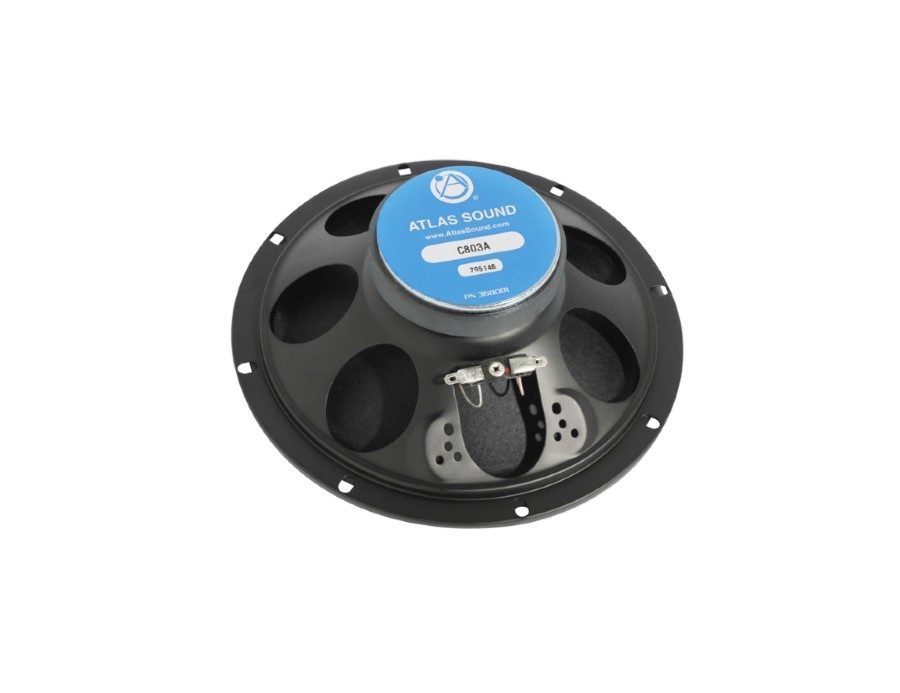

The C803A combines a full-size 8″ (203mm) dia. low-frequency reproducer and a 3″ (76mm) high-frequency reproducer. The two sections are coupled via a built-in crossover network. The woofer has a 10 oz. (260g) ceramic magnet; the tweeter has a 2.35 oz. (67g) ceramic magnet and the unit has a peak sensitivity of 98dB (at 1 watt, 1 meter).
