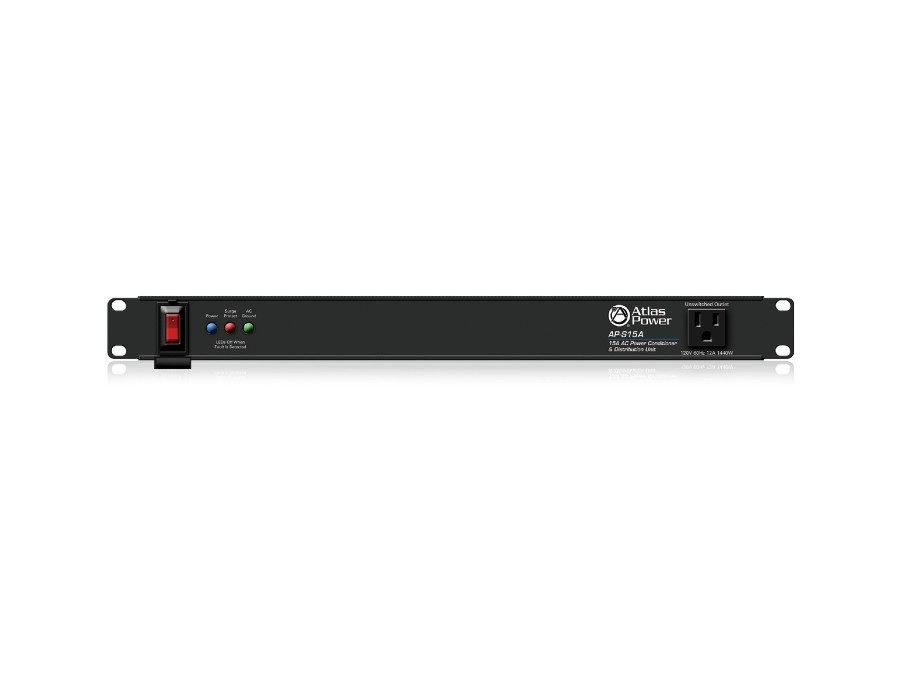

Atlas Sound AP-S15LA
Atlas Sound AP-S15LA
The AP-S15LA features noise filtering for unwanted Radio Frequency Interference (RFI) that is commonly introduced into AC lines by nearby radio transmitters or wireless products. EMI filters are also incorporated to reduce noise from Electromagnetic Interference (EMI) generated by items such as electric motors and switching power supplies.
Unstable AC Mains voltage is one of the main reasons for equipment failure. The amount of energy that can be injected into the power system can be immense with voltages reaching 6kV or amperage peaks of 3000A. These spikes are very fast and usually only last for a very short period of time. The AP-S15LA’s circuitry is very fast and can suppress unwanted energy within a nanosecond response and sustain the suppression up to 2 milliseconds. The AP-S15LA includes a pull out from lamp, 12 foot removable IEC cord with retainer.
Current Rating15 AmpsCertified To Safety ListingMET (UL 1449)Operating Voltage102-132VACMinimum Spike Clamping Voltage460 VRMS @ 3000AMaximum Spike Clamping Voltage6000VPower Consumption6 WattsAC Mains Power Cord12′ (4m)Height1.75″ (44.5mm)Width19″ (482.6mm)Depth5″ (127mm)Weight5 lbs. (2.27 kg)
