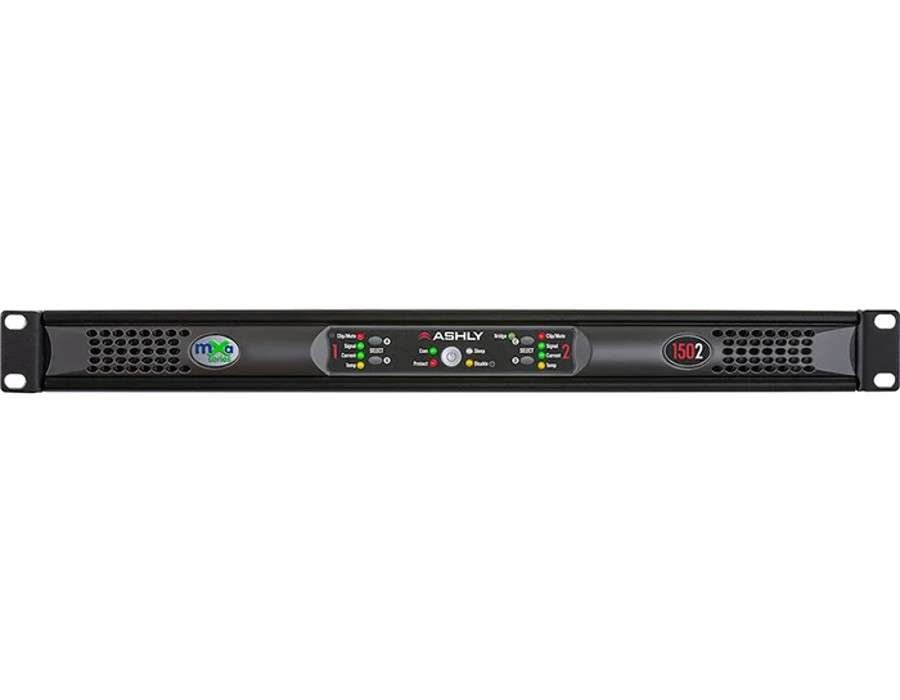

Ashly MXA 1502

Equipped with the powerhouse Ashly AquaControl software™, the mXa-1502 mixing amplifier is an all encompassing solution for multi-zone music distribution, paging, automatic mixing, and more. This 12×4 mixer is enables you to process 12 audio inputs into four different areas. Designed to be powerful and discreet, this single rack space device includes two Ashly-reliable 150-watt amplifiers capable of driving 2,4 and 8-ohm as well as 25, 70 and 100V loads. AquaControl™ provides convenient access from many browser-based device—no additional equipment or apps needed.

Applications

Hospitality

Education

Sports

House of Worship

Includes

• Ashly AquaControl™ Software
  • Inputs: Programmable Analog Mic Preamps, Phantom Power On/Off, Gain with Link Group Assign and Polarity switch, Remote Gain, DVCA Gain, Meter with Peak Hold Equalizers, 31-band Graphic — Constant or Proportional Q, 10-band Parametric EQ + HPF / LPF, and Signal Generator
  • Delay Dynamics: Compressor, Auto Leveler, Clip (Brick Wall Limiter), Gate, Anti-Feedback (AFC) Mixer 1-4, Matrixing, Automixers, Ducker
  • Outputs: 31-band Graphic — Constant or Proportional Q, 10-Band Parametric, FIR Filters, 2/3/4-way Crossover, Ambient Noise Control, Delay, Dynamics (same as Inputs), Signal Generator, Meter with Peak Hold
  • Compatibility: Windows® OS 10, Mac® OS 10 and later, Linux Web Browsers, Chrome for Windows®, OS X, iOS, Android®, Safari for OS X, and Edge for Windows®
• Event Scheduler (Calendar), Event Logs, and Reports

Features

• 8-balanced Mic/Line Inputs
• Precision Class A mic preamp design
• 4 Stereo Line Inputs and 4 Outputs
• 2 x 150W Class D Amplifiers with selectable Multi-mode operation (2/4/8 Ohm + 25/70/100V)
• Four convenient front-panel buttons for source/preset select
• Scheduler and RTC (Real-Time Clock) allows user-defined automatic, timed activation of various operations
• Generous integration I/O, including: Network, Serial, GPIO, VC, Standby & Fault (works with the WR-1, WR-1.1, WR-1.5, and WR-2 remotes)
• Compact 1U design reduces rack space requirements

Specifications

• Damping Factor: >250 (8 Ohm load
• Distortion (SMPTE, typical): < 0.5%
• Distortion (THD-N, typical): < 0.5% (8 Ohms, 10dB below rated power, 20Hz–20kHz)
• Channel Separation: –75dB (dB from full output, 1kHz)
• Signal-to-Noise (unweighted): 20Hz-20kHz, Gain@26dB
• Frequency Response: 20Hz-20kHz, ±0.05dB
• Balanced Input Connector: Euroblock 3.5mm
• Input Impedance: 10k Ohms
• Maximum Input Level: +21dBu
• Speaker Output Connector: Euroblock 7.62mm
• Nominal Voltage Input: 100 – 240VAC
• Operating Range: 70 – 270VAC
• Power Supply Type: SMPS with active PFC
• AC Mains Line Cord Connector: Detachable Nema 5-15 for USA
• Control Network: RJ-45 connector, 1GB Ethernet
• AUX Output Connector: Balanced Euroblock 3.5mm
• AUX Output Maximum Level: +21dBu
• Data Connection: Euroblock 3.5mm – Gnd, +18V, Data Out, Data In
• Fault Condition Logic Outputs : Euroblock 3.5mm – fault indicated by loss of 1Hz “heartbeat” pulse signal
• Remote DC Level Control: Euroblock 3.5mm – Gnd, CV, V+ per input
• Amplifier Protection: Shorted output power limiting, over-temperature, DC-output, power-supply fault, mains-fuses & inrush-current limiting
• Cooling: Continuously variable temperature controlled fan
• Unit Dimensions: 19” x 1.75” x 14.54”
• Dimensions: 25.2” x 2.5″ x 19.5”
• Weight : 13.0 lbs
