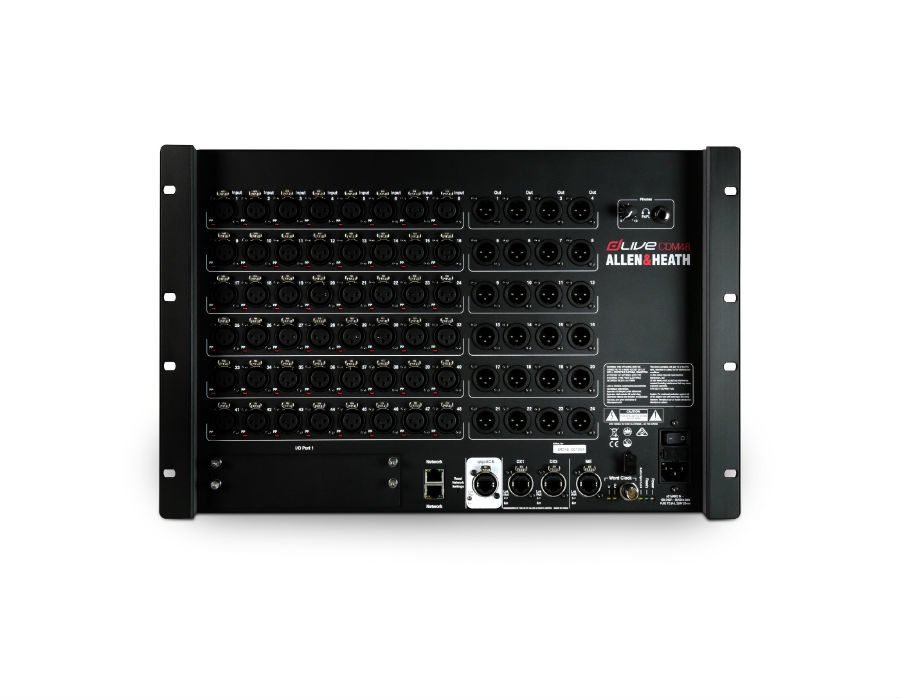

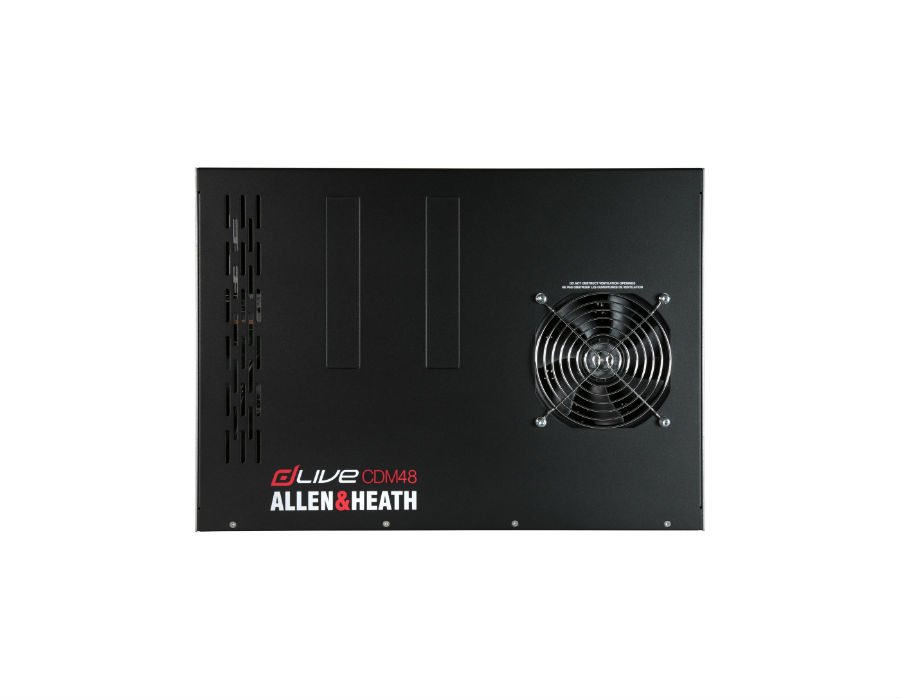

Allen & Heath dLive CDM48 MixRack
Allen & Heath dLive CDM48 MixRack
The MixRack is the heart of any dLive system. It houses the XCVI processing core complete with audio I/O, control and audio networking ports. It is typically connected to a dLive Surface, but can also be controlled at the same time as or even without a Surface using a laptop or iPad, Allen & Heath IP remotes or third party controllers via TCP/IP.
There are different sizes of dLive MixRack available. All feature the same mix engine and can work with the full 128 channels by adding DX expanders or digital sources.
Features
- 48 mic/line inputs, 24 line outputs
- XCVI 160×64 FPGA core
- 96kHz sample rate
- Variable bit-depth for ultimate precision and noise performance
- Virtually infinite mix headroom thanks to 96bit accumulator
- Class leading, ultra-low latency at 0.7ms
- 128 Input Channels with full processing
- 64 Mix Outputs with full processing
- Configurable 64 bus architecture (group, FX, aux, matrix, mains)
- LR, LCR and up to 5.1 mains mode
- Multiple PFLs
- 16 RackExtra FX with dedicated stereo returns
- 24 DCAs
- AMM (Automatic Mic Mixer) up to 64 channels across 1, 2 or 4 zones
- Built-in signal generator and RTA
- New preamp design for extra transparency
- Unique Active PAD circuit for consistent performance with any source
- Connection hub
- gigaACE gigabit link to Surface
- 2x DX links for I/O expansion
- I/O Port – 128 ch 96 kHz
- Dedicated ME-1 48kHz port
- 2x Network ports
- Wordclock BNC I/O
- Add up to 22 DX I/O expanders via DX Hub modules or DX Link cards
- Flush front panel with ultra quiet fan
- Reversible rack ears design
