Allen & Heath dLive C1500
Allen & Heath dLive C1500

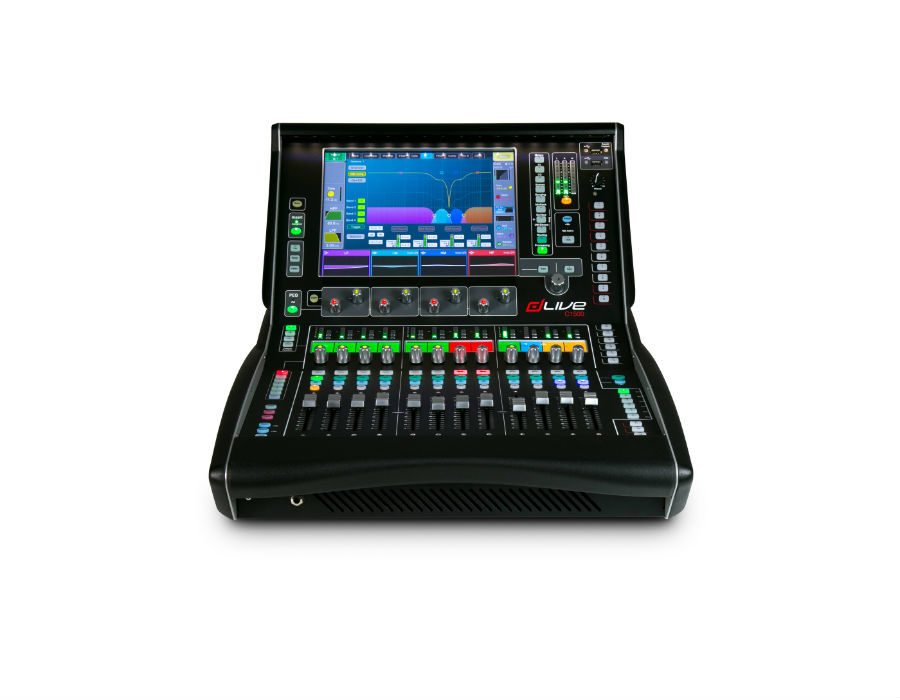

The C1500 is the first rack-mountable control Surface for the dLive MixRack. Packed in a tiny footprint are 12 faders over 6 layers, built-in audio I/O, an audio networking port, a 12″ capacitive touchscreen and the innovative Harmony UI for the fastest workflow in the industry.
Features
- 12 faders
- Fully assignable layout – 72 fader strips
- Harmony UI integrates screen and wrap-around controls
- 12” capacitive touchscreen
- Gesture control – pinch, swipe, drag ‘n drop
- Dedicated multi-mode EQ view
- Configurable widget areas for Scenes, meters, FX and more
- 19 assignable SoftKeys
- Engineer’s Wedge and IEM fader strips
- Comprehensive multipoint metering
- Daylight visibility
- USB stereo recording and playback

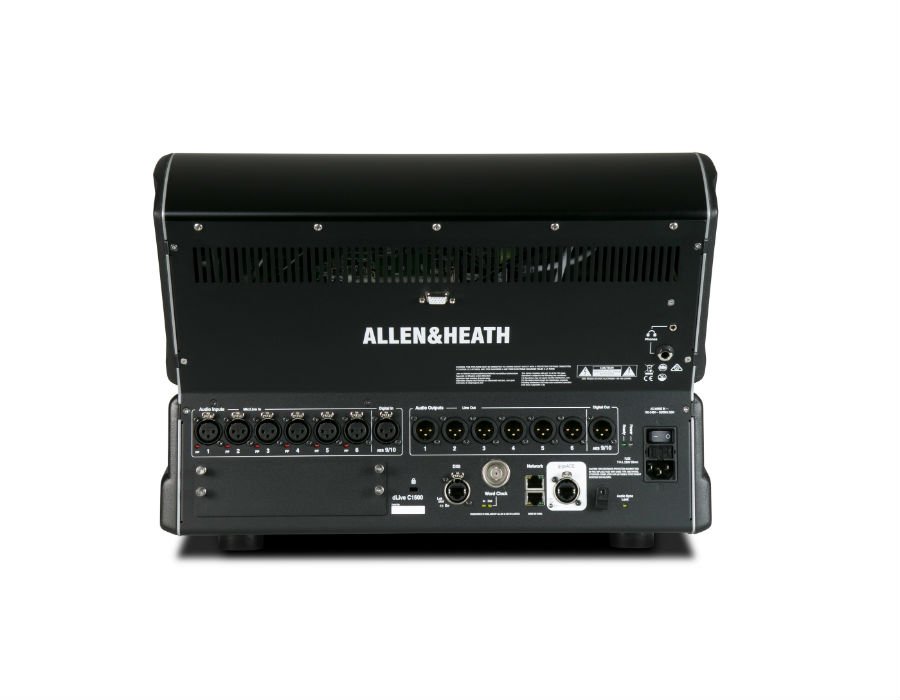

- 6 XLR mic/line in, 6 XLR line out
- 1 digital st AES3 in, 1 digital st AES3 out
- Connection hub
- GigaACE gigabit link to MixRack
- DX link for I/O expansion
- I/O Port – 128 ch 96 kHz
- 2x Network ports
- Wordclock BNC I/O
- Video output
