Allen & Heath AR84
Allen & Heath AR84

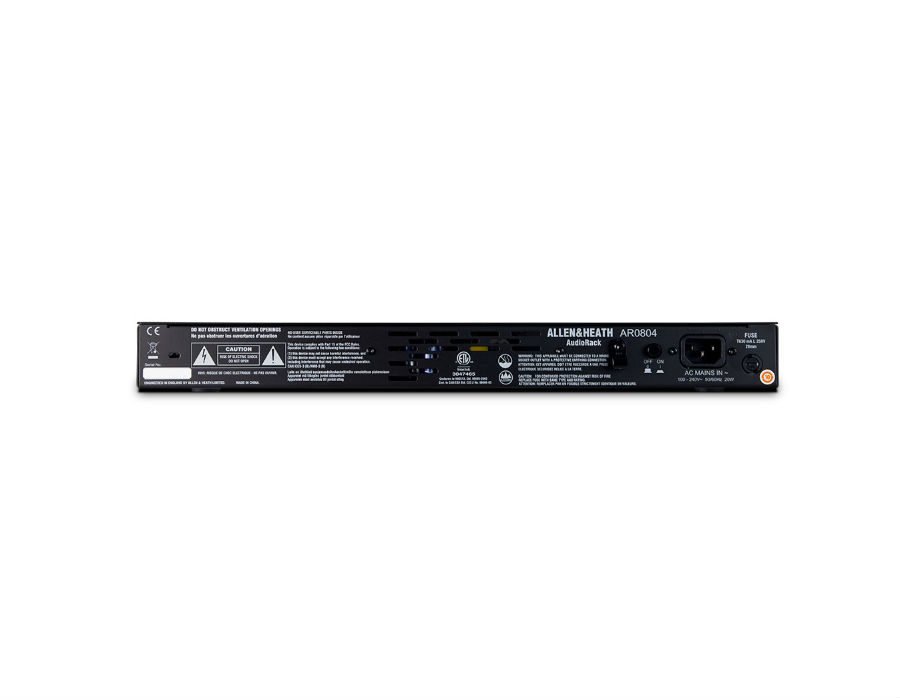

AR84 is an 8 XLR input, 4 XLR output AudioRack. Adding an AR84 to your system lets you position some of your I/O up to 100m from the mxer, connected over a single Cat5 cable running Allen & Heath’s dSNAKE protocol. dSNAKE provides control to the remote preamp, and all mic preamps are scene recallable.
Features
- 8 Mic Preamps on XLR
- 4 XLR Line Outs
- dSNAKE Connection with locking Ethercon port
- Rack mountable
The unit shall be a portable remote audio rack for a digital mixing system. The remote audio rack shall provide 8 XLR inputs and 4 XLR outputs and shall be connected to add a further inputs and outputs. The XLR sockets shall be the same or higher quality and specification as those located on the digital mixing system, and shall appear in the digital mixing system soft patch for assignment to channels. Audio connection shall be over Cat5 cable using Allen & Heath’s dSNAKE Ethernet protocol, allowing the remote audio rack to be positioned up to 100m from the mixer or expanded audio rack. The Ethernet protocol shall provide control to the remote preamp, and all mic preamps are scene recallable by the digital mixing system. Unit firmwar e shall automatically be updated when connected to the digital mixing system. The local Ethernet port shall be an RJ45 socket with EtherCon locking ring. It shall also be possible to connected the remote audio rack to a main AudioRack unit to add a further 8 XLR inputs and 4 XLR outputs from that location. This connection shall be
