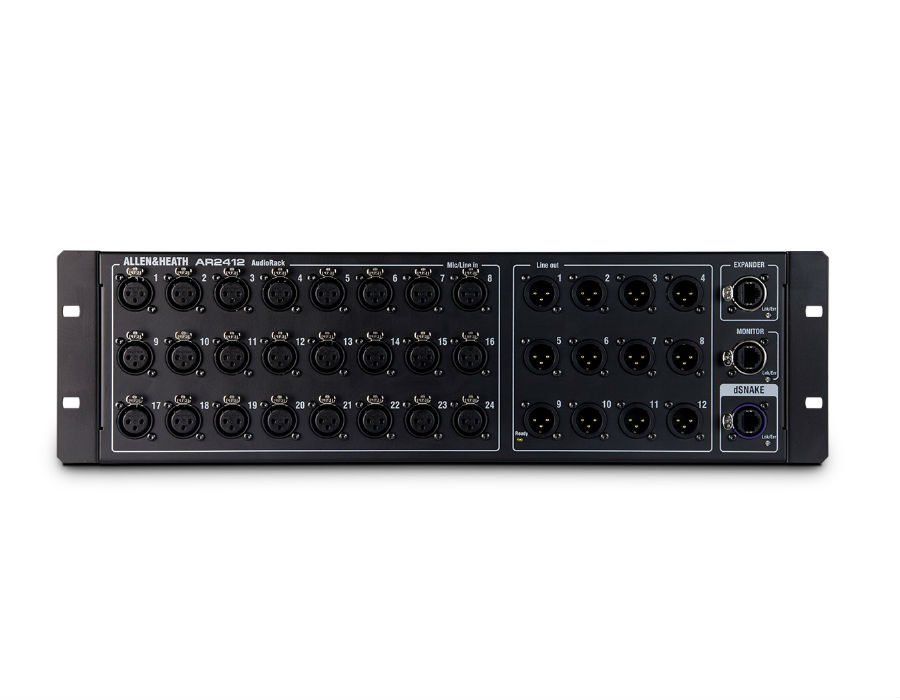

Allen & Heath AR2412
Allen & Heath AR2412
AR2412 is a 24 XLR input, 12 XLR output AudioRack. Adding an AR2412 to your system lets you position some or all of your I/O up to 100m from the mixer, connected over a single Cat5 cable running Allen & Heath’s dSNAKE protocol. dSNAKE provides control to the remote preamp, and all mic preamps are scene recallable. AR2412 also includes a Monitor port for connection to ME-1 personal mixers, and an Expander port for daisy chaining to an AR84 or AB168.
• Compatible with SQ, Qu, Avantis, AHM-64, GLD
• 24 XLR Mic Preamps and 12 XLR Line Outs
• dSNAKE and dSNAKE Expander Connection with
locking Ethercon por
Allen&Heath ME and Aviom Pro 16 compatible
Monitor Connection with locking Ethercon port
The unit shall be a portable remote audio rack for a digital mixing system. The remote audio rack shall provide 24 XLR inputs and 12 XLR outputs and shall be connected to add a further inputs and outputs. The XLR sockets shall be the same or higher quality and specification as those located on the digital mixing system, and shall appear in the digital mixing system soft patch for assignment to channels. Audio connection shall be over Cat5 cable using Allen & Heath’s dSNAKE Ethernet protocol, allowing the remote audio rack to be positioned up to 100m from the mixer or expanded audio rack. The Ethernet protocol shall provide control to the remote preamp, and all mic preamps are scene recallable by the digital mixing system. Unit firmware shall automatically be updated when connected to the digital
mixing system. The local Ethernet port shall be an RJ45 socket with EtherCon locking ring. It shall also be possible to connect a further remote audio rack to the main AudioRack unit to add a further 8 XLR inputs and 4 XLR outputs from that location. This connection
