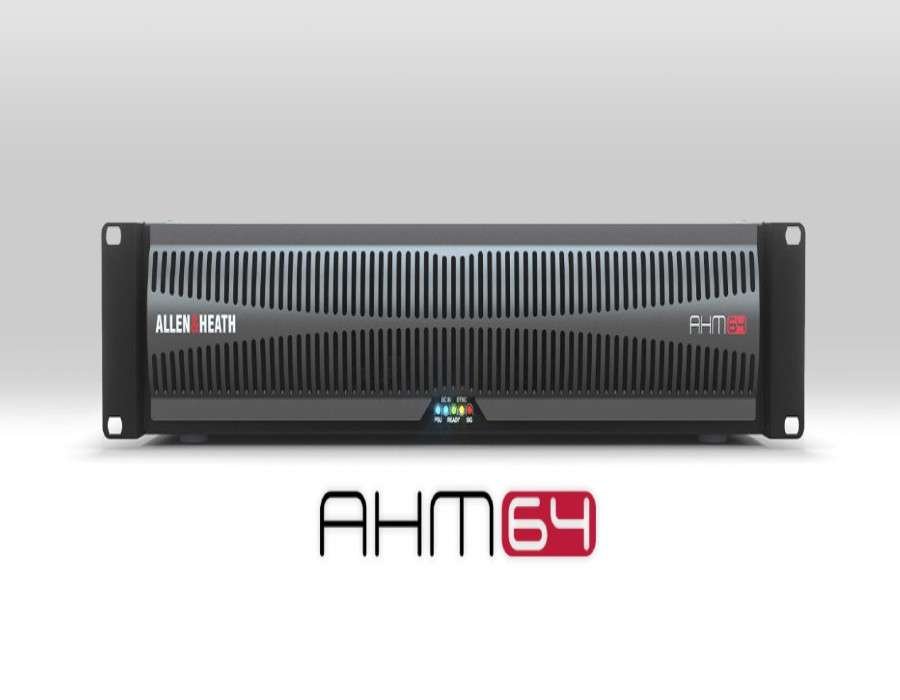

Allen & Heath AHM64
Allen & Heath AHM64
The most powerful matrix processor in the range, AHM-64 can scale to large campus installations with up to 64 zones, 96 controllers and hundreds of system I/O.
The Acoustic Echo Cancellation (AEC) modules for AHM-64 & AHM-32 provide 12 channels of AEC and are designed for teleconferencing and videoconferencing applications.
The AEC processors are assigned using channel inserts in the AHM. One insert sits in the far-end Input channel, and the other in the near-end Input channel. A Sound Reinforcement output is also provided for cases where local voice reinforcement is required.
SPECIFICATIONS
- AEC (Acoustic Echo Cancelling) module for AHM-64 & AHM-32
- 12 channels of AEC
- 150ms FIR Adaptive Filter
- Far-end AGC (Automatic Gain Control)
- Residual echo NLP (non-linear processing)
- Background noise reduction
- Near-end gating
- Speech-shaped comfort noise
With remote attendance of meetings and conferences becoming increasingly common, high quality audio is critical to ensure intelligibility for all attendees.
Remote participants often experience distracting echoes – caused by their voice being played over speakers in the conference room, picked up by multiple microphones and broadcast back to the caller – which can seriously impede the clarity of the audio, and the flow of the meeting.
Allen & Heath’s Acoustic Echo Cancellation intelligently detects the «echo» in the remote participants feed, plus any residual effects caused by room acoustics, and utilises dedicated hardware processing to minimise the unwanted audio.
