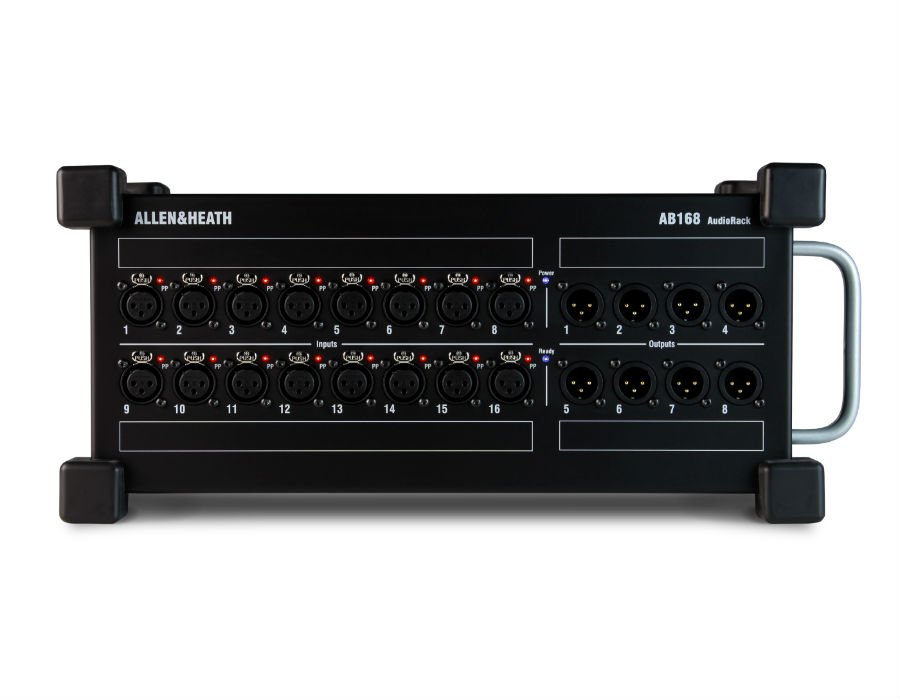

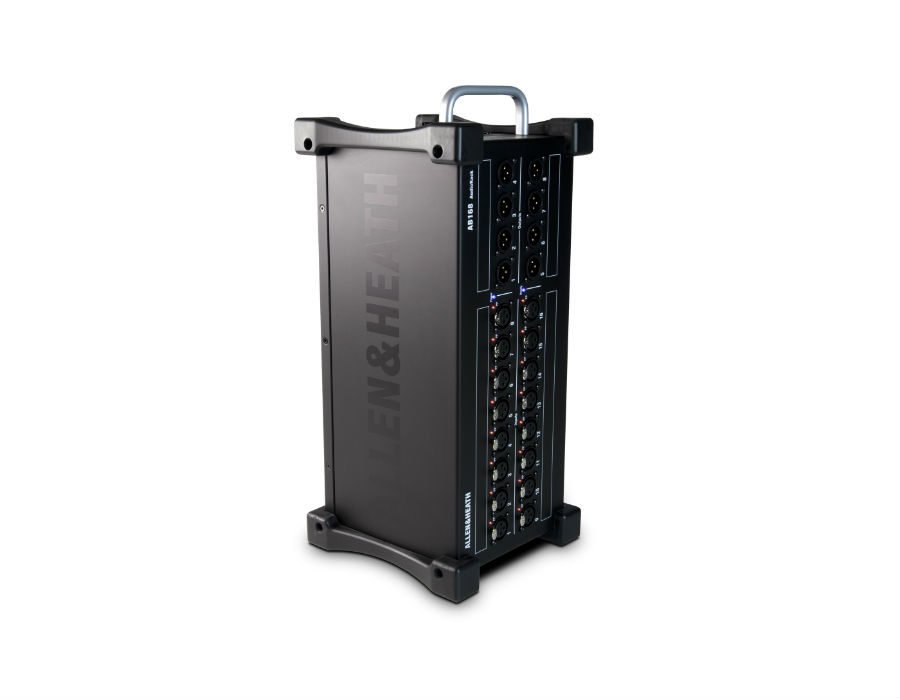

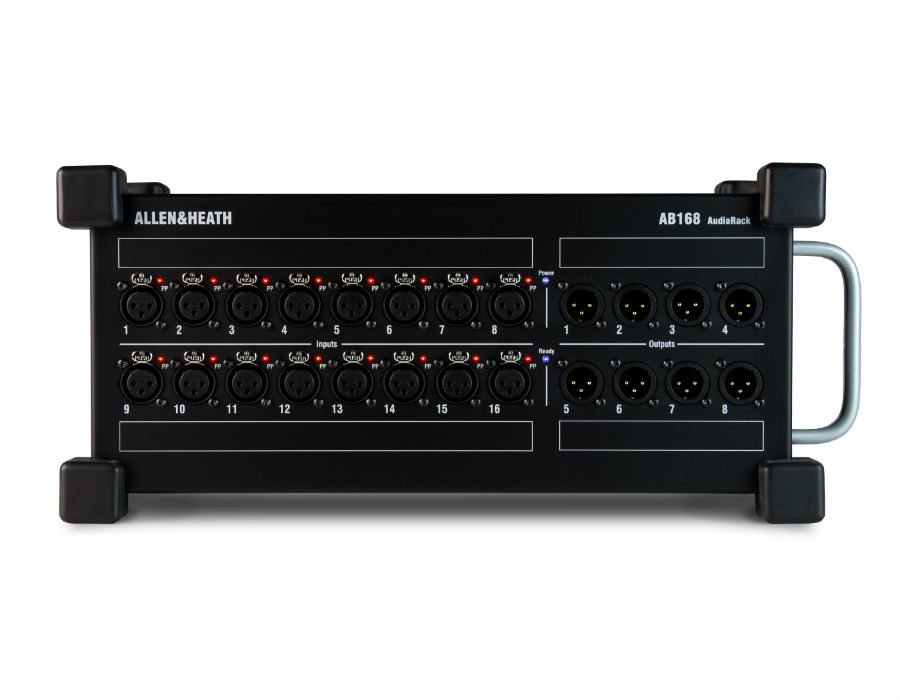

Allen & Heath AB168
Allen & Heath AB168
AB168 is a portable AudioRack, providing 16 XLR inputs and 8 XLR outputs when connected to a GLD-80 or GLD-112 mixer, or to an AR2412 AudioRack.
Featuring 16 mic preamps with Phantom Power indicators and 8 XLR line outs, AB168 runs on Allen & Heath’s proprietary dSNAKE protocol.
The AB168 unit connects over a single Cat5 cable to the GLD mixer or to an AR2412 AudioRack via a secure dSNAKE EtherCon port. A second EtherCon port is provided for daisy-chaining to another AB168 box or connection of a ME personal mixing system. AB168 auto updates its firmware to synchronise with the GLD system.
The rack’s rugged design, including rubber bumpers, renders it highly roadworthy and allows it to be placed on the stage floor during performances. Weighing in at just 4.8kg and featuring a sturdy carry handle, AB168 is also designed for maximum convenience and portability. An optional rack mounting kit is also available.
Features
- 48kHz
- 16 Mic Preamps
- 8 XLR Line Outs
- Expander port for daisy-chaining of 2 AB168 Expanders or connection ME personal mixers
- Optional 19-inch rack mount kit available
- Compatible with CAT5e (or higher) cables of up to 100m
- Rubber bumpers
- Carry handle
