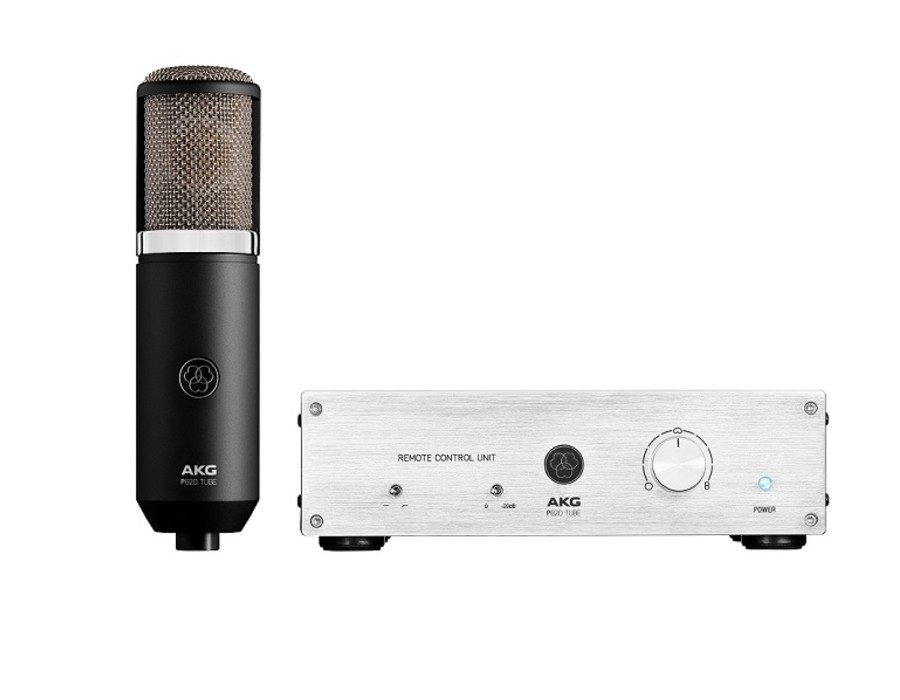

AKG P820 TUBE
AKG P820 TUBE High-performance dual-capsule tube microphone
The P820 Tube high-performance multi-pattern tube microphone is an excellent tool for highlighting lead vocals, brass instruments, electric guitars and drums. With its dual one-inch diaphragm capsule and the advanced ECC83 dual-triode circuitry, the P820 Tube delivers real tube sound and raises the bar in its class of affordable tube microphones.
The P820 Tube high-performance multipattern tube microphone is an excellent tool for highlighting lead vocals, brass instruments, electric guitars and drums. With its dual one-inch diaphragm capsule and the
advanced ECC83 dual-triode circuitry, the P820 Tube delivers real tube sound and raises the bar in its class of affordable tube microphones.
General Specifications
- Audio frequency bandwidth20 – 20000 Hz
- Equivalent noise level16 dB-A
- Sensitivity20 mV/Pa
- Signal to Noise78 dB-A
- Preattenuation Pad-20 dB
- Bass cut filter80 – 12 dB/octave (selectable on remote control unit)
- Electrical impedance<= 200 Ohms
- Recommended load impedance>= 1000 Ohms
- Polar PatternCardioid, Omnidirectional, Figure of eight (plus six intermediate patterns)
Dimensions
- Length212 mm
- Diameter54 mm
- Net Weight765 g
Audio Output
- TypeBalanced XLR
- GenderMale
- Contacts3-pin
Powering Interface
- Powering210-240 VAC or 110-120 VAC (selectable)
- Primary Fuse125 mA/250 V slow-blow
