AKG CU800
AKG CU800 Charging unit

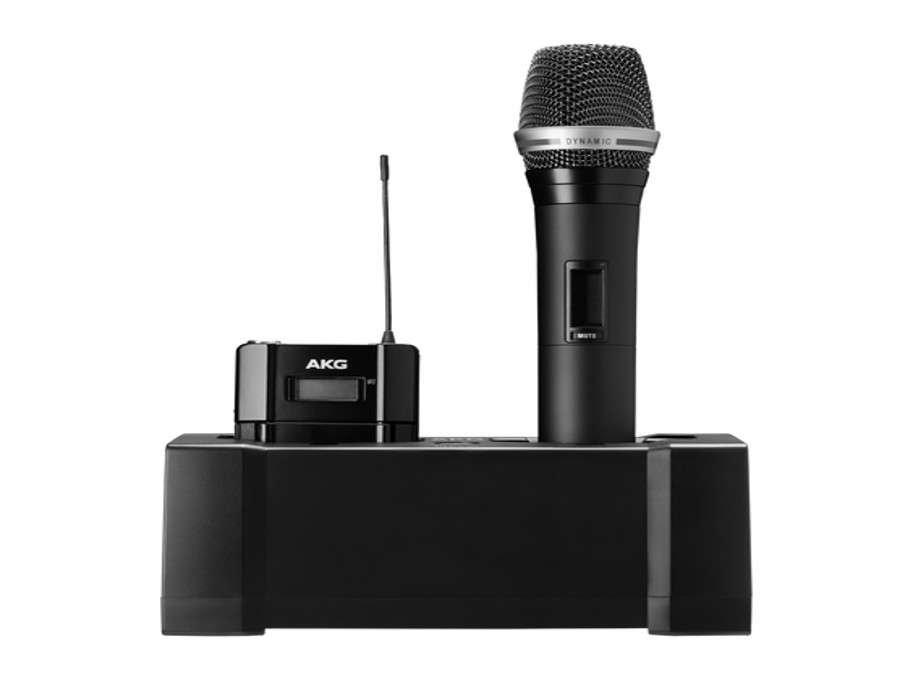

The charging unit CU800 has been designed specifically for use with the DMS800 wireless system. It is also fully compatible with the DMS700. The charger provides two charging slots specially shaped to accept the DHT800 (with the included adapters) and DPT800 transmitters. The charging slots operate completely independently so two transmitters with rechargeable batteries can be charged simultaneously. Integrated charging contacts allow the batteries to remain inside the transmitter while charging on the CU800.
The charger determines the optimum charge current and has a quiet cooling fan to control the temperature of the cells. The charger uses pulse technology, in which a pulse is fed to the battery. With pulse charging, high instantaneous voltages can be applied without overheating the battery. The housing can be rack-mounted using the optional 19″ rack-mount unit.
General Specifications
- FinishBlack
- Operating Voltage12 V DC, 2 A max
- AC Voltage100 — 240 V AC
- Charging Currenttyp. 1.4 A in single-slot mode
- Charging Timetyp. 1.5 hours in single-slot mode (depending on battery type and capacity)
- Dimensions194 x 85 x 82 mm (7.68 x 3.35 x 3.23‘‘)
- Net Weight670 g (23.63 oz.)
- 1 x CU800 Charging unit
- 4 x NiHM AA rechargeable batteries
- 1 x AC adapter EU/US/UK/AU
- 2 x CU-adapter
