Descripción

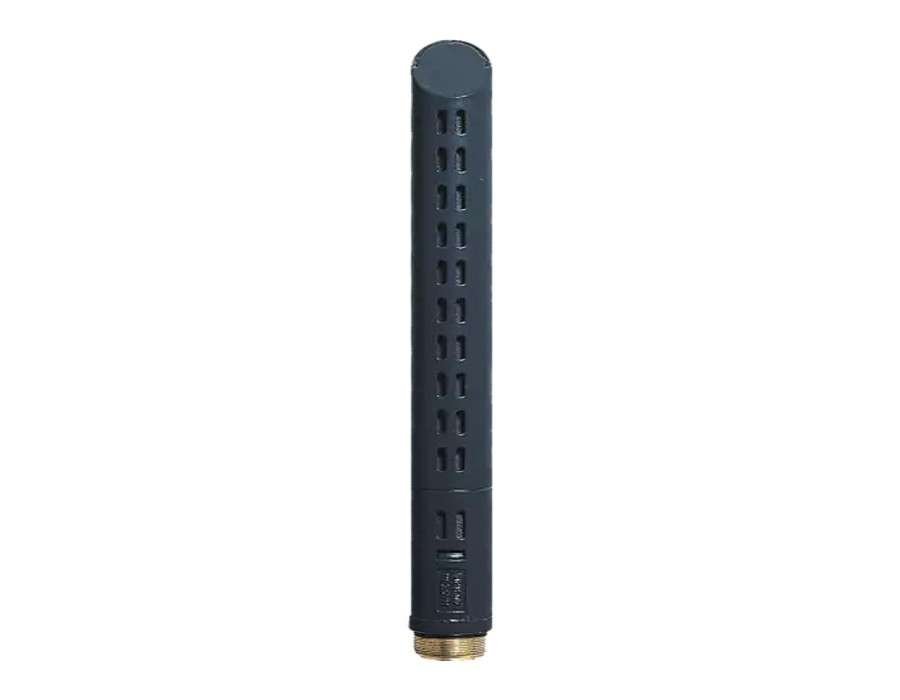

AKG CK80
AKG CK80 High-performance shotgun condenser microphone capsule – DAM Series
The CK80 high-performance shotgun microphone capsule provides an 80° pickup angle and offers a speech-optimized frequency response. It offers an unbeatable price/performance ratio and good speech intelligibility in acoustically critical applications. The CK80 capsule fits any mounting module of the DAM Series. To prevent contact problems, the capsule is equipped with large-area, self-cleaning, gold-plated contacts with deep threads to prevent misalignment and ensure extra-long life. The CK80 comes complete with a professional windscreen that reduces wind and pop noise.
General Specifications
- Audio frequency bandwidth60 – 15000 Hz
- Equivalent noise level17 dB-A
- Sensitivity30 mV/Pa
- Signal to Noise77 dB-A
- Electrical impedance600 Ohms
- Recommended load impedance2000 Ohms
- Polar PatternHypercardioid
Powering Interface
- Voltage9 to 52 V
- Current3 mA
Dimensions
- Height146 mm
- Diameter13.5 mm
- Net Weight15 g
Design
- Finishmatte dark gray
Audio Output
TypeModular Series Standard
