AKG C411PP

Descripción

AKG C411PP

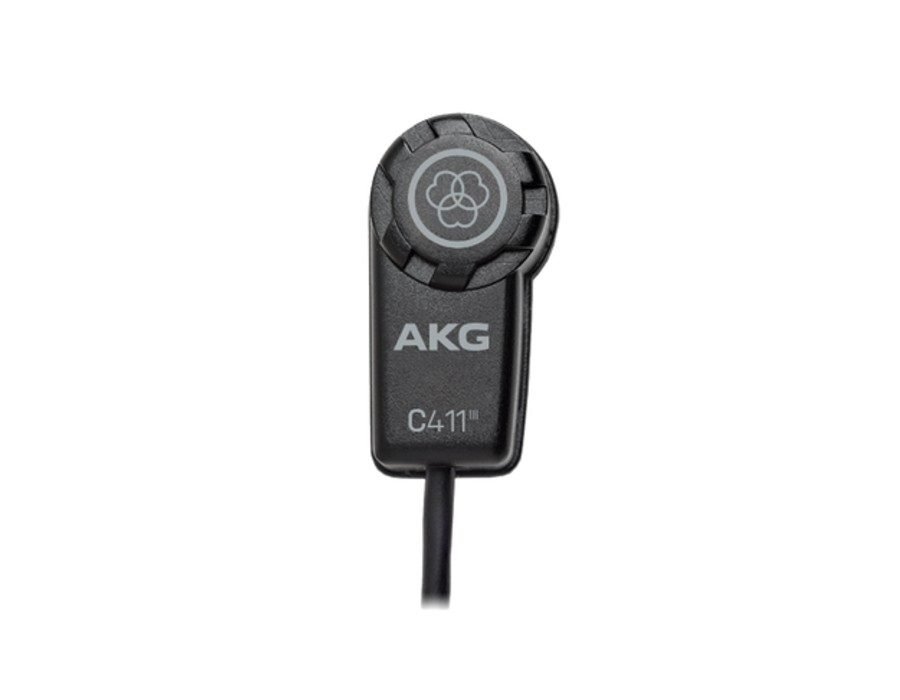

AKG C411PP High-performance miniature condenser vibration pickup

The C411 is a miniature vibration pickup for acoustic guitar, mandolin, violin and most other string instruments. Its integrated condenser capsule will reproduce the sound of the instrument clearly and without coloration. The C411 ultralight pickup (18g/0.6oz) can be easily attached on or near the bridge with the included nonmarking, solvent-free adhesive pad without changing the balance of the instrument. The C411 is available in two versions. The C411 PP features a MPAV standard XLR connector while the C411 L provides a professional three-pin mini XLR connector that fits the body-pack transmitters of all AKG wireless microphone systems.

tem 1 (2571M9901) is the complete pickup assembly with free cable end. The pickup itself cannot be dismantled and is not further repairable. When connecting two-wire pickups to PCB 2397M1022 use round pad for screen and square pad for red. The rectangular pad remains unused. For variation 1 (A) and 3 (C) inside the plug the blue cable core (if there is one) has to be connected to screen.
