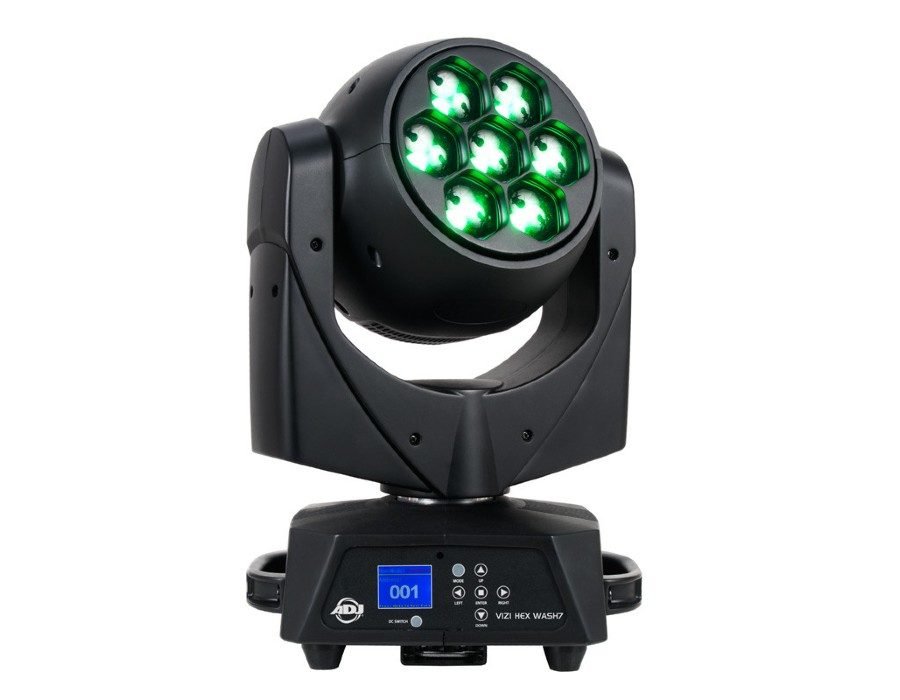

ADJ Vizi HEX Wash7
ADJ Vizi HEX Wash7
The Vizi Hex Wash7 is a 105W professional moving head wash fixture with variable zoom (5 ~ 55-degrees) and seven 15W HEX (RGBWA+UV) LEDs. It features 64 built-in Color Macros, super fast pan/tilt movement, electronic dimming with 5 dimming curves and a pan/tilt inversion mode or contrasting movement when fixtures are linked together.
The Vizi Hex Wash7 has 3 DMX channel modes, 3-pin or 5-pin DMX connections and powerCON In/Out power linking. Plus, this fixture is equipped with ADJ’s WiFLY wireless DMX. This fixture is ideal for stages, theaters, churches, nightclubs, concert venues and event productions.
Optical
• Light Source: 7 (15) Watt HEX RGBWA+UV LED
• Life Expectancy: 50,000 hrs
• Beam Angle: 5~55-degree
• Refresh Rate: 1.2KHz
Specifications
• Pan & Tilt Range: 630-degree (540 Optional) /Tilt 270-degree
• Colors: 64 built-in color macros
• Dimming: Electronic
• Zoom: Motorized 5°-55°
• Strobe: Electronic
• Dimmer Curves: 5 dimmer curves
• Operational Modes: 2 modes Program/ DMX
• Flicker Free
• Wifly EXR DMX Range: 2,500 feet (line of site)
• Wifly On/Off
• Dimensions (LxWxH): 11.75” x 8 x15.75”/300×200 x 400mm
• Weight: 19 lbs./8.5 kgs
Connections
• Power Input: Locking power IN connection
• Power Pass through: Locking power OUT connection
• Data: 3 & 5-pin In/Out DMX
• With Wired Digital Communication Network
Control
• DMX Modes: 2, RDM (Remote Device Management)
• On Board: LCD menu 180 degree inverse
• 16 Selectable WiFLY Address Channels
Certifications
• Certifications: ETL Approved, CE Certified
Electrical
• Input Voltage: 100~230 V, 50 Hz./60Hz
• Power draw @120V: 137W
• Power draw @ 220V:
Whats Included
• Omega bracket
• Locking power to Edison cable
• User Manual
