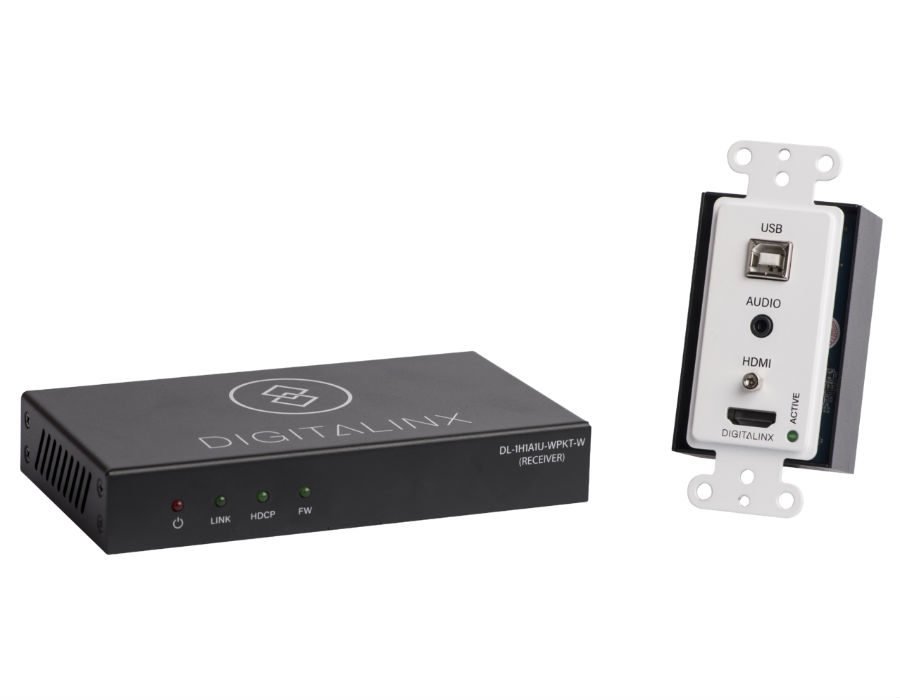

Intelix DL-1H1A1U-WPKT-W
The Digitalinx DL-1H1A1U-WPKT-W HDBaseT 2.0 extender set transmits HDMI, audio , USB High Speed (up to 190Mbps) and RS232 over single category 6 twisted pair cable. The DL-1H1A1U-WPKT-W can transmit 4K resolutions up to 4K@60Hz, 4:2:0 up to 40m / 120’ and 1080P up to 70m / 230’. The audio circuit is completely separate and is not dependent on the HDMI or USB input source to be active. The Digitalinx DL-1H1A1U-WPKT-W is HDMI 1.4b and HDCP 2.2 compliant and supports CEC pass through.
The DL-1H1A1U-WPKT-W HDBaseT receiver powers wall plate transmitter via HDBaseT so there is no need for an external power supply for the wall plate.
The DL-1H1A1U-WPKT-W is sold only as a set. The individual transmitter and receiver are not compatible with other HDBaseT devices due to proprietary PoE circuitry.
- Fully Compatible with Promethean Interactive Whiteboards*
- Complete set includes Wall plate TX, RX, Power supply, cover plate
- Extend HDMI up to 4K, USB2.0, & Analog Audio signals up to 70 meters. HDCP2.2 Compliant
- Extends RS232 & 1 way PoC from RX to wall plate TX
- HDMI, audio, USB 2.0 high speed extender set
- Supports video up to 4K2K@30Hz (4:4:4), 4K2K@60Hz (4:2:0) 10.2G
- Pass-through 3.5mm analog audio passes audio independent of HDMI port
- Extend USB 2.0 high speed up to 240Mbps
- Receiver features HDMI output, 3.5mm audio output, and 2 USB-A ports
- Supports HDCP 2.2 and HDCP 1.4 compliant
- Supports all HDMI audio formats
- Single cable 40m for 4K / 70m for 1080P
- RS232 & CEC pass-through
- Dedicated 3.5mm audio independent from the HDMI signal
- Remote power from receiver to wall plate transmitter
- TX is standard US 1-gang decorator format
- Perfect for signal extension to interactive displays and projectors!
- ** Now Supporting «New» ActivPanel displays from Promethean!! Please contact Liberty support for more information!
Applications
- Extend HDMI source, USB2.0 high speed, and audio source at the same time or independently
- Extension of HDMI, 3.5mm audio, USB2.0 high speed signals
- Education, K-12, commercial video, residential
- *Liberty AV, its affiliated brands and parent companies, are not affiliated, associated with, or endorsed by Promethean®. Any mention of the Promethean® brand is to promote feature compatibility and provide information.
